LG Display LP141WX5-TLP3 lembar data, spesifikasi, stok, aplikasi www.looklcd-id.com
LookLCD LookLCD

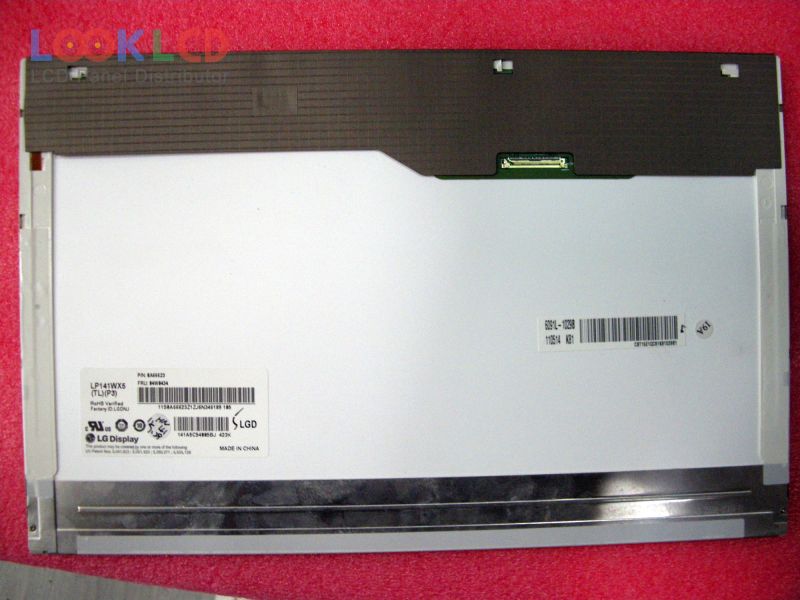

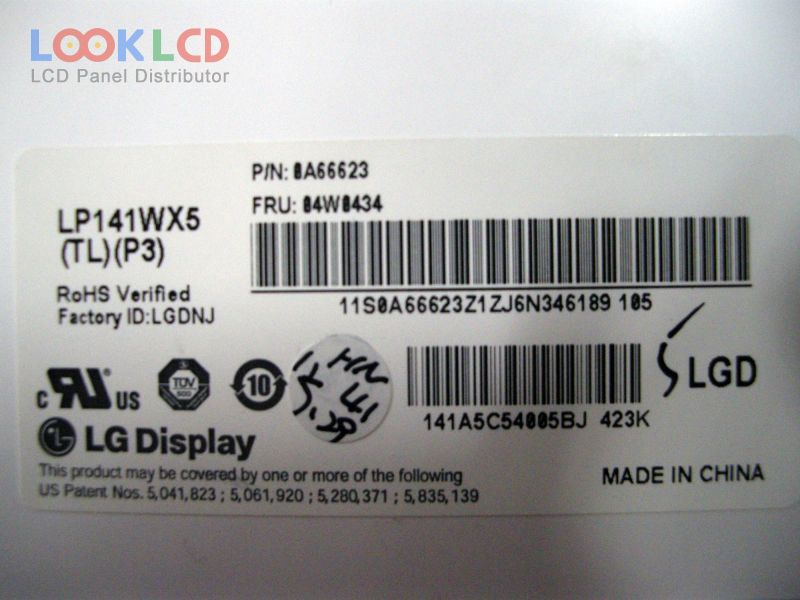

LP141WX5-TLP3

LP141WX5-TLP3
LP141WX5-TLP3
LP141WX5-TLP3 thumb LP141WX5-TLP3 thumb
Merek
LG Display
Ukuran
14.1
Aplikasi
NBPC
Resolusi
1280×800
Komposisi
LCM
Kecerahan
220
CR
400:1
Warna
262K
Lampu latar
WLED
Antarmuka
LVDS
In Stock
3692
Spesifikasi

Nomor Bagian LP141WX5-TLP3
MerekLG Display
Ukuran14.1
AplikasiNBPC
Resolusi1280×800
KomposisiLCM
Kecerahan220
CR400:1
Warna262K
Lampu latarWLED
AntarmukaLVDS
merek panelLG Display
model panelLP141WX5-TLP3
tipe panel a-Si TFT-LCD , LCM
ukuran panel14.1 inch
resolusi1280(RGB)×800 , WXGA
mode tampilanTN, Normally White, Transmissive
daerah aktif303.74×189.84 mm
garis besar319.5×205.5×5.5 mm
gaya bentukWedge (PCBA Bent, Depth ≥5.2mm)
permukaanAntiglare
kecerahan220 cd/m² (Typ.)
rasio kontras400:1 (Typ.)
menampilkan warna262K (6-bit)
waktu merespon16 (Typ.)(Tr+Td)
sudut pandang45/45/15/35 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampuWLEDEmbedded (LED Driver)
antarmuka sinyalLVDS (1 ch, 6-bit), 40 pins
tegangan masukan3.3V (Typ.)
aplikasiNBPC
