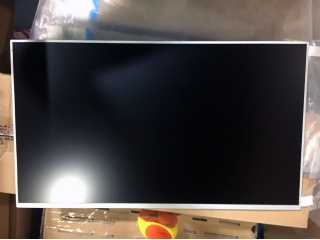

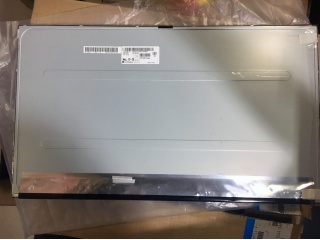

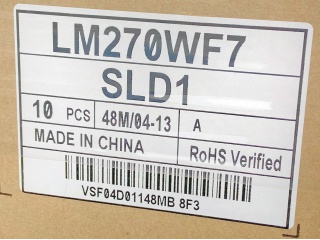

| Nomor Bagian | LM270WF7-SLD1 |
| Merek | LG Display |
| Ukuran | 27.0 |
| Aplikasi | Desktop Monitor Indu |
| Resolusi | 1920×1080 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| pabrikan | LG Display |
| nama model | LM270WF7-SLD1 |
| ukuran layar | 27.0 inch |
| tipe layar | LCM , a-Si TFT-LCD |
| nomor piksel | 1920(RGB)×1080 (FHD) 81PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 597.888 × 336.312 (H×V) |
| garis besar (mm) | 611.5 × 355.8 (H×V×D) |
| area bezel (mm) | 601.5 × 339.95 (H×V) |
| perlakuan | Antiglare (Haze 25%), Hard coating (3H) |
| pencahayaan | 300 cd/m² (Typ.) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| tanggapan | 14 (Typ.)(G to G) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | IPS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 72% NTSC |
| lampu latar | WLED , 30K hours , No Driver |
| massa | 2.87/3.01Kgs (Typ./Max.) |
| digunakan untuk | Desktop Monitor Industrial |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | LVDS (2 ch, 8-bit) , 30 pins Connector |
| sumber tegangan | 5.0V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
