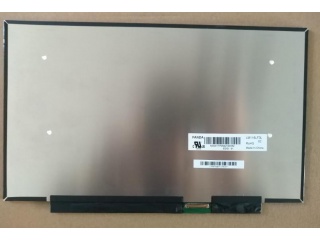

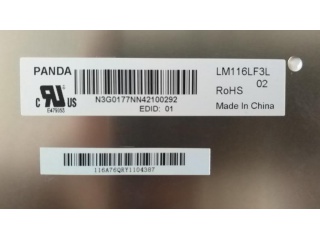

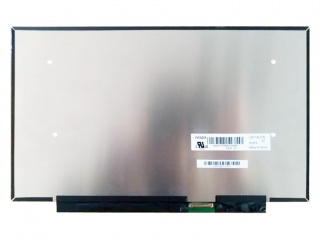

| Nomor Bagian | LM116LF3L02 |
| Merek | PANDA |
| Ukuran | 11.6 |
| Aplikasi | Pad & Tablet |
| Resolusi | 1920×1080 |
| Komposisi | LCM , Oxide TFT-LC |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| pabrikan | PANDA |
| nama model | LM116LF3L02 (NCP0000) |
| ukuran layar | 11.6 inch |
| tipe layar | LCM , Oxide TFT-LCD |
| nomor piksel | 1920(RGB)×1080 (FHD) 190PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 256.32 × 144.18 (H×V) |
| garis besar (mm) | 268 × 168 × 3 (H×V×D) |
| area bezel (mm) | - |
| perlakuan | Antiglare, Hard coating (3H) |
| pencahayaan | 300 cd/m² (Typ.) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| tanggapan | 25 (Typ.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | FFS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 100% sRGB |
| lampu latar | WLED , 15K hours , With LED Driver |
| massa | 215g (Max.) |
| digunakan untuk | Pad & Tablet |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
