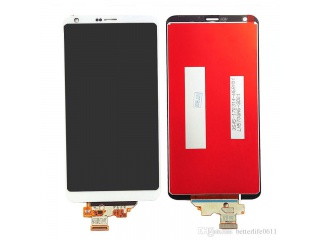

| Nomor Bagian | LH570QH6-SD01 |
| Merek | LG Display |
| Ukuran | 5.7 |
| Aplikasi | Mobile Phone |
| Resolusi | 1440×2880 |
| Komposisi | Assembly , a-Si TF |
| Kecerahan | |
| CR | 1500:1 |
| Warna | 16.7M |
| Lampu latar | 4S3P |
| Antarmuka | MIPI |
| pabrikan | LG Display |
| ukuran layar | 5.7 inch |
| nomor piksel | 1440(RGB)×2880 564PPI |
| area aktif (mm) | 64.8 × 129.6 (H×V) |
| area bezel (mm) | - |
| pencahayaan | 500 cd/m² (Typ.) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| kedalaman warna | 16.7M 85% NTSC |
| massa | 26.6±2.7g |
| tingkat penyegaran | 60Hz |
| jenis sinyal | MIPI (4 data lanes) , 54 pins Connector |
| sumber tegangan | 1.8/3.3/5.5/-5.5V (Typ.)(VDDI/VPNL/DDVDL/DDVDH) |
| maks. peringkat | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| nama model | LH570QH6-SD01 |
| tipe layar | Assembly , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 68.72 × 145.7 (H×V×D) |
| perlakuan | Hard coating |
| rasio kontras | 1500 : 1 (Typ.) (TM) |
| tanggapan | 25 (Typ.)(Tr+Td) ms |
| mode kerja | - |
| lampu latar | 4S3P WLED , No Driver |
| digunakan untuk | Mobile Phone |
| layar sentuh | PCAP |
