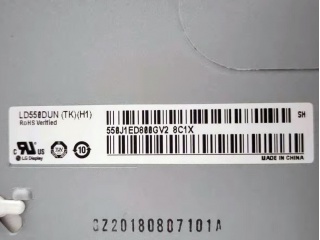

| Nomor Bagian | LD550DUN-TKH1 |
| Merek | LG Display |
| Ukuran | 55 |
| Aplikasi | Video Wall |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1300:1 |
| Warna | 1.06B |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | LG Display |
| model panel | LD550DUN-TKH1 |
| ukuran panel | 55" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 1920(RGB)×1080, FHD, 40PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 1209.6(W)×680.4(H) mm |
| bukaan bezel | 1209.9(W)×680.7(H) mm |
| ukuran garis besar | 1213.4(W)×684.2(H) ×57.2(D) mm |
| permukaan | Antiglare (Haze 3%), Hard coating (2H), Antireflection |
| kecerahan | 1500 cd/m² (Typ.) |
| rasio kontras | 1300:1 (Typ.) (TM) |
| sudut pandang | 89/89/89/89 (Min.)(CR≥10) |
| mode tampilan | S-IPS, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 8 (Typ.)(G to G) |
| menampilkan warna | 1.06B 72% NTSC |
| jenis lampu | WLED , 60K hours , With LED Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| jahitan videowall | 3.8 mm (active to active seam) |
| aplikasi | Video Wall |
| antarmuka sinyal | LVDS (2 ch, 10-bit) , 51 pins Connector |
| tegangan masukan | 12.0V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
