LG Display LC320WXD-SAC1 lembar data, spesifikasi, stok, aplikasi www.looklcd-id.com
LookLCD LookLCD

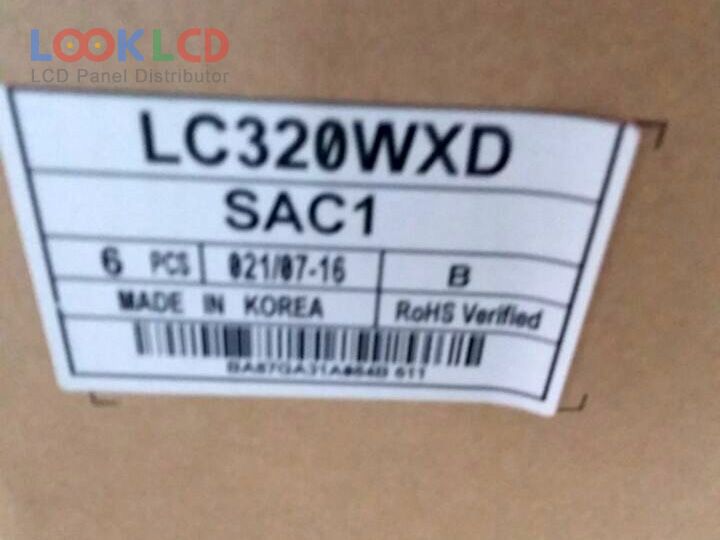

LC320WXD-SAC1

LC320WXD-SAC1
LC320WXD-SAC1 thumb
Merek
LG Display
Ukuran
31.5
Aplikasi
LCTV
Resolusi
1366×768
Komposisi
LCM
Kecerahan
500
CR
1100:1
Warna
16.7M/1.07B
Lampu latar
EEFL
Antarmuka
LVDS
In Stock
7728
Spesifikasi

Nomor Bagian LC320WXD-SAC1
MerekLG Display
Ukuran31.5
AplikasiLCTV
Resolusi1366×768
KomposisiLCM
Kecerahan500
CR1100:1
Warna16.7M/1.07B
Lampu latarEEFL
AntarmukaLVDS
merek panelLG.Philips LCD
model panelLC320WXD-SAC1
tipe panel a-Si TFT-LCD , LCM
ukuran panel31.5 inch
resolusi1366(RGB)×768 , WXGA
mode tampilanS-IPS, Normally Black, Transmissive
daerah aktif697.685×392.256 mm
garis besar760×450×49 mm
permukaanAntiglare (Haze 13%), Hard coating (3H)
kecerahan500 cd/m² (Typ.)
rasio kontras1100:1 (Typ.)
menampilkan warna16.7M/1.07B (8-bit / 8-bit + Hi-FRC)
waktu merespon8 (Typ.)(G to G); 11 (Typ.)(MPRT)
sudut pandang89/89/89/89 (Min.)(CR≥10)(L/R/U/D)
frekuensi120Hz (60Hz Input)
jenis lampu12 pcsEEFLEmbedded (Inverter)
antarmuka sinyalLVDS (2 ch, 8/10-bit), 51 pins
tegangan masukan12.0V (Typ.)
aplikasiLCTV
