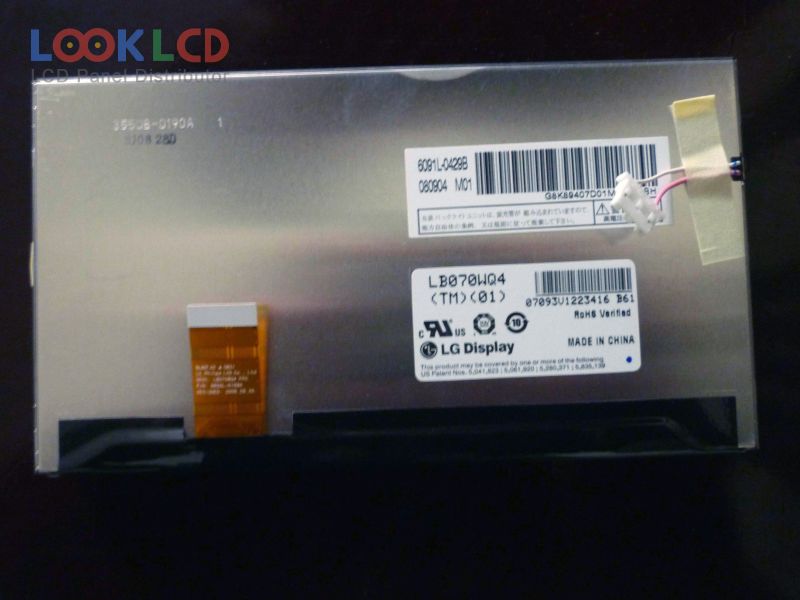

| Nomor Bagian | LB070WQ4-TM01 |
| Merek | LG Display |
| Ukuran | 7.0 |
| Aplikasi | CNS |
| Resolusi | 480×234 |
| Komposisi | LCM |
| Kecerahan | 450 |
| CR | 400:1 |
| Warna | Full color |
| Lampu latar | CCFL |
| Antarmuka | Analog |
| merek panel | LG.Philips LCD |
| model panel | LB070WQ4-TM01 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 7.0 inch |
| resolusi | 480(RGB)×234 |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 156.24×82.368 mm |
| garis besar | 167×93×7.8 mm |
| permukaan | Antiglare |
| kecerahan | 450 cd/m² (Typ.) |
| rasio kontras | 400:1 (Typ.) |
| menampilkan warna | Full color , CIE193145% |
| waktu merespon | 50/75 (Max.)(Tr/Td) |
| sudut pandang | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | TFT Specific Analog RGB, 30 pins |
| tegangan masukan | 3.3/5.0/18.5/-12.0V (Typ.)(VDD1/VDD2/VGH/VGL) |
| aplikasi | CNS |
