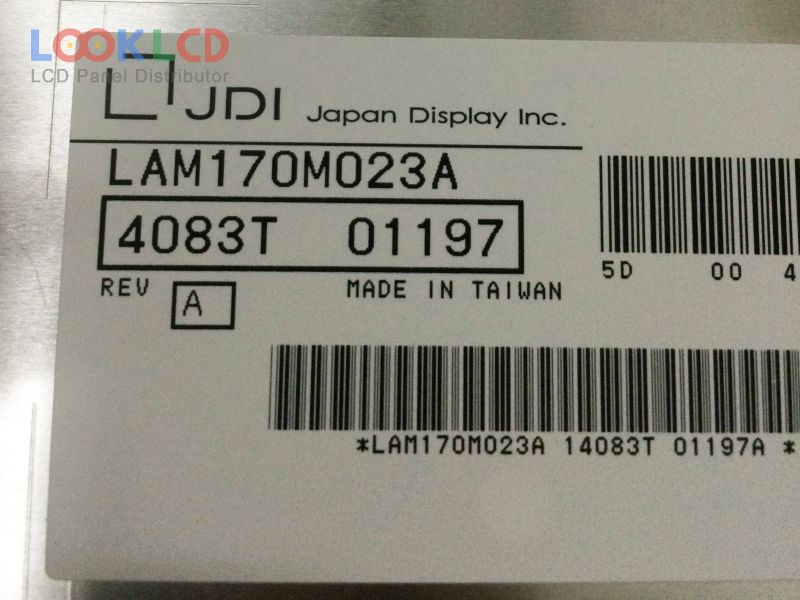

| Nomor Bagian | LAM170M023A |
| Merek | JDI |
| Ukuran | 17.0 |
| Aplikasi | MD |
| Resolusi | 1280×1024 |
| Komposisi | LCM |
| Kecerahan | 240 |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | JDI |
| model panel | LAM170M023A |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 17.0 inch |
| resolusi | 1280(RGB)×1024 , SXGA |
| mode tampilan | IPS, Normally Black, Transmissive |
| daerah aktif | 337.92×270.336 mm |
| garis besar | 368×306×20.4 mm |
| permukaan | Antiglare, Hard coating (2H) |
| kecerahan | 240 cd/m² (Typ.) |
| rasio kontras | 900:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193174% |
| waktu merespon | 10/12 (Typ.)(Tr/Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 3 stringsWLEDEmbedded (LED Driver) |
| antarmuka sinyal | LVDS (2 ch, 8-bit), 30 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | MD |
