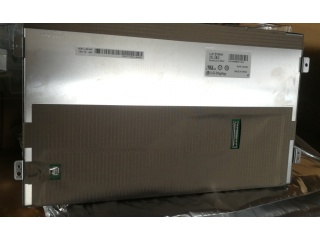

| Nomor Bagian | LA121WH1-SL02 |
| Merek | LG Display |
| Ukuran | 12.1 |
| Aplikasi | Automotive Display |
| Resolusi | 1280×720 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 8S3P |
| Antarmuka | LVDS |
| pabrikan | LG Display |
| nama model | LA121WH1-SL02 |
| ukuran layar | 12.1 inch |
| tipe layar | LCM , a-Si TFT-LCD |
| nomor piksel | 1280(RGB)×720 (WXGA) 121PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 266.88 × 150.12 (H×V) |
| garis besar (mm) | 287.4 × 163.45 × 9.51 (H×V×D) |
| area bezel (mm) | 269.65 × 152.55 (H×V) |
| perlakuan | Antiglare |
| pencahayaan | 500 cd/m² (Typ.) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandang | 80/80/80/80 (Min.)(CR≥10) |
| tanggapan | 17/13 (Max.)(Tr+Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | IPS, Normally Black, Transmissive |
| kedalaman warna | 16.7M 62% NTSC |
| lampu latar | 8S3P WLED , 10K hours , No Driver |
| massa | 417±5g |
| digunakan untuk | Automotive Display |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |

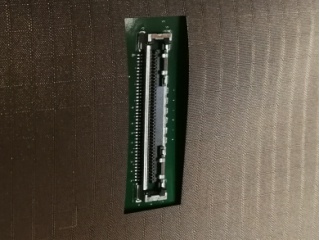

| jenis sinyal | LVDS (1 ch, 8-bit) , 40 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
