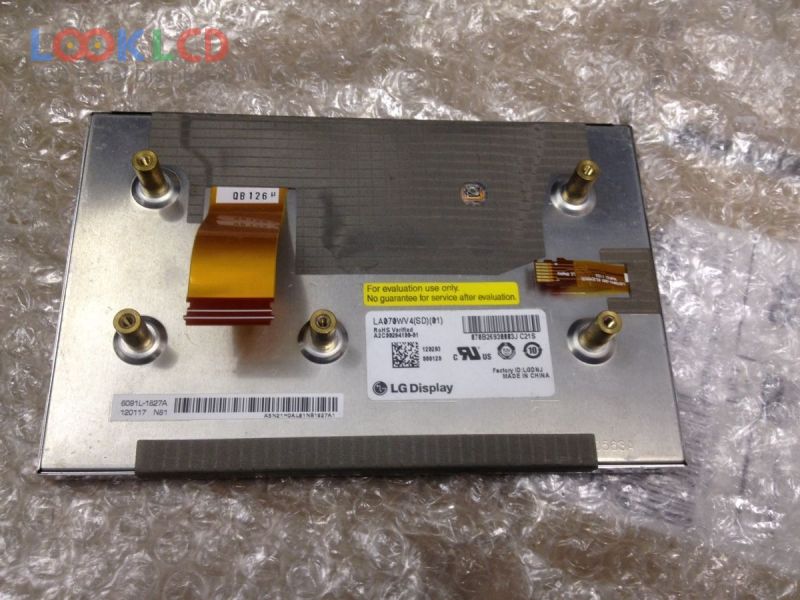

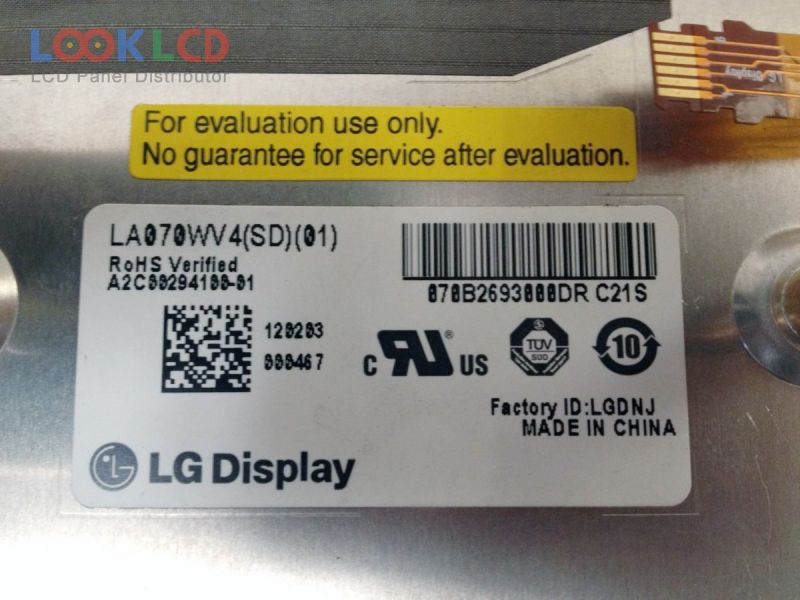

| Nomor Bagian | LA070WV4-SD01 |
| Merek | LG Display |
| Ukuran | 7.0 |
| Aplikasi | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 470 |
| CR | 900:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | TTL |
| merek panel | LG Display |
| model panel | LA070WV4-SD01 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mode tampilan | IPS, Normally Black, Transmissive |
| daerah aktif | 152.4×91.44 mm |
| garis besar | 170×109.6 mm |
| permukaan | Antiglare (Haze 11%) |
| kecerahan | 470 cd/m² (Typ.) |
| rasio kontras | 900:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193165% |
| waktu merespon | 15/10 (Typ.)(Tr/Td) |
| sudut pandang | 70/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 7S2PWLEDWithout Driver |
| antarmuka sinyal | Parallel RGB (1 ch, 6-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | CNS |
| LA070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LA070WV1-TD03 | LG Display | 7.0 | 800×480 |
| LA070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LA070WV1-TH01 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD03 | LG Display | 7.0 | 800×480 |
| LA070WV4-SD04 | LG Display | 7.0 | 800×480 |
| LA070WV5-SL01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SD01 | LG Display | 7.0 | 800×480 |
| LA070WV6-SL01 | LG Display | 7.0 | 800×480 |
| C043GW01 V0 | AUO | 4.3 | 400×234 |
| C065GW03 V0 | AUO | 6.5 | 400×240 |
| C070VVN03.3 | AUO | 7.0 | 800×480 |
| C070VW04 V7 | AUO | 7.0 | 800×480 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| LS080HT111 | Innolux | 8.0 | 800×600 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
| PM070WT2 | E Ink | 7.0 | 800×480 |
