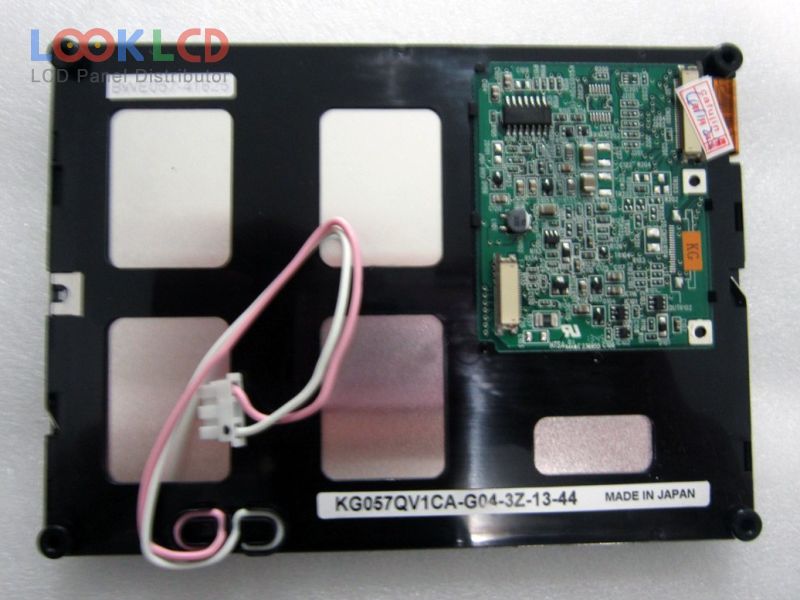

| Nomor Bagian | KG057QV1CA-G04 |
| Merek | Kyocera |
| Ukuran | 5.7 |
| Aplikasi | IA |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | 260 |
| CR | 4:1 |
| Warna | Monochrome |
| Lampu latar | CCFL |
| Antarmuka | Parallel Data |
| merek panel | Kyocera |
| model panel | KG057QV1CA-G04 |
| tipe panel | STN-LCD , LCM |
| ukuran panel | 5.7 inch |
| resolusi | 320×240 , QVGA |
| mode tampilan | STN, Blue mode (Negative), Transmissive |
| daerah aktif | 115.18×86.38 mm |
| garis besar | 144×104.8×13.2 mm |
| permukaan | Glare (Haze 0%) |
| kecerahan | 260 cd/m² (Typ.) |
| rasio kontras | 4:1 (Typ.) |
| menampilkan warna | Monochrome |
| waktu merespon | 380/120 (Typ.)(Tr/Td) |
| sudut pandang | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 75Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | Parallel Data (4-bit), 20 pins |
| tegangan masukan | 3.3/5.0V (Typ.)(VDD) |
| aplikasi | IA |
