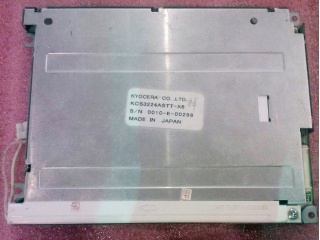

| Nomor Bagian | KCS3224ASTT-X6 |
| Merek | Kyocera |
| Ukuran | 5.7 |
| Aplikasi | Industrial |
| Resolusi | 320×240 |
| Komposisi | CSTN-LCD , LCM |
| Kecerahan | |
| CR | 25:1 |
| Warna | Color |
| Lampu latar | - |
| Antarmuka | Parallel |
| merek | Kyocera |
| ukuran diagonal | 5.7 inch |
| format piksel | 320(RGB)×240 [QVGA] 70PPI |
| daerah aktif | 115.2(H)×86.4(V) mm |
| pencahayaan | - |
| arah pandangan | - |
| sudut pandang | 50/50/30/30 (Typ.)(CR≥2) |
| warna pendukung | Color |
| berat | - |
| kecepatan bingkai | 75Hz |
| tipe antarmuka | Parallel Data (1ch, 8-bit) Connector |
| Sumber Daya listrik | 5.0V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | KCS3224ASTT-X6 |
| jenis | CSTN-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar redup. | - |
| rasio kontras | 25:1 (Typ.) (TM) |
| waktu merespon | 220/110 (Typ.)(Tr/Td) |
| Modus operasi | STN, Normally Black, Transmissive |
| sumber cahaya | |
| dirancang untuk | Industrial |
| panel sentuh | Without |
| AM-320240N1TMQW-T30H-D(R) | AMPIRE | 5.7 | 320×240 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-T01H | AMPIRE | 5.7 | 640×480 |
| COM57H5M10XRC | ORTUSTECH | 5.7 | 640×480 |
| EL320.240.36 HB CCB | Lumineq | 5.7 | 320×240 |
| G057VN01 V2 | AUO | 5.7 | 640×480 |
| LM32019T | SHARP | 5.7 | 320×240 |
| LTA057A341F | TOSHIBA | 5.7 | 320×240 |
| TM057QDH01 | Tianma | 5.7 | 640×480 |
| TM057QDHG02 | Tianma | 5.7 | 640×480 |
