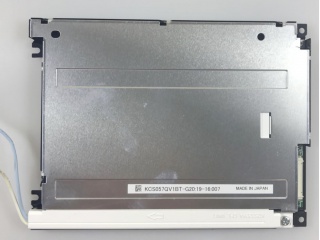

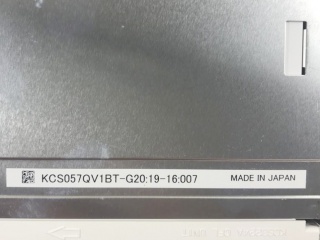

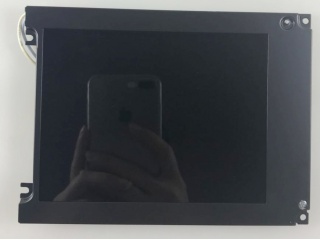

| Nomor Bagian | KCS057QV1BT-G20 |
| Merek | Kyocera |
| Ukuran | 5.7 |
| Aplikasi | Industrial |
| Resolusi | 320×240 |
| Komposisi | CSTN-LCD , LCM |
| Kecerahan | |
| CR | 40:1 |
| Warna | Color |
| Lampu latar | 1 |
| Antarmuka | |
| merek panel | Kyocera |
| ukuran panel | 5.7" |
| resolusi | 320(RGB)×240, QVGA, 70PPI |
| area tampilan | 115.2(W)×86.4(H) mm |
| kecerahan | - |
| sudut pandang | 50/50/30/30 (Typ.)(CR≥2) |
| tampilan terbaik di | - |
| menampilkan warna | Color |
| frekuensi | - |
| berat | - |
| model panel | KCS057QV1BT-G20 |
| tipe panel | CSTN-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| rasio kontras | 40:1 (Typ.) (TM) |
| mode tampilan | STN, Normally Black, Transmissive |
| waktu merespon | 220/110 (Typ.)(Tr/Td) |
| jenis lampu | 1 pcs CCFL , 40K hours , Without Driver |
| layar sentuh | Without |
| aplikasi | Industrial |
| AM-640480G2TNQW-00H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G4TNQW-T01H | AMPIRE | 5.7 | 640×480 |
| EL320.240.36 HB SE | PLANAR | 5.7 | 320×240 |
| KCS057QV1AJ-G20 | Kyocera | 5.7 | 320×240 |
| KCS057QV1AJ-G23 | Kyocera | 5.7 | 320×240 |
| KCS057QV1AJ-G32 | Kyocera | 5.7 | 320×240 |
| KCS057QV1AJ-G39 | Kyocera | 5.7 | 320×240 |
| KCS057QV1BR-G21 | Kyocera | 5.7 | 320×240 |
| LCBHBT161M | NAN YA | 5.7 | 320×240 |
| SP14Q001 | KOE | 5.7 | 320×240 |
