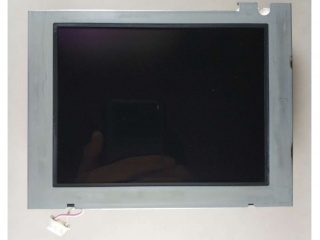

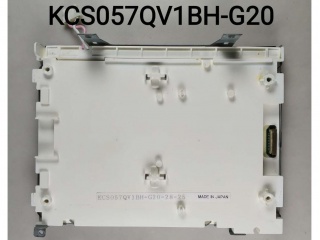

| Nomor Bagian | KCS057QV1BH-G20 |
| Merek | Kyocera |
| Ukuran | 5.7 |
| Aplikasi | Industrial |
| Resolusi | 320×240 |
| Komposisi | LCM, CSTN-LCD |
| Kecerahan | |
| CR | 40:1 |
| Warna | Color |
| Lampu latar | 1 |
| Antarmuka | Parallel |
| pabrikan | Kyocera |
| nama model | KCS057QV1BH-G20 |
| ukuran layar | 5.7 inch |
| tipe layar | LCM, CSTN-LCD |
| nomor piksel | 320(RGB)×240 (QVGA) 70PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 115.2 × 86.4 (H×V) |
| garis besar (mm) | - |
| pencahayaan | - |
| rasio kontras | 40 : 1 (Typ.) (TM) |
| sudut pandang | 50/50/30/30 (Typ.)(CR≥2) |
| tanggapan | 220/110 (Typ.)(Tr/Td) ms |
| pemandangan bagus di | - |
| mode kerja | STN, Normally Black, Transmissive |
| kedalaman warna | Color |
| lampu latar | 1 pcs CCFL , 40K hours , No Driver |
| massa | - |
| digunakan untuk | Industrial |
| tingkat penyegaran | - |
| layar sentuh | Without |
| jenis sinyal | Parallel Data (1ch, 8-bit) , Connector 15 pins |
