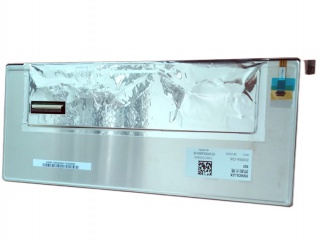

| Nomor Bagian | JJ103IA-12A |
| Merek | Innolux |
| Ukuran | 10.3 |
| Aplikasi | Outdoor High Brightn |
| Resolusi | 1920×720 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1300:1 |
| Warna | 16.7M |
| Lampu latar | 4 |
| Antarmuka | LVDS |
| merek panel | Innolux |
| ukuran panel | 10.3" |
| resolusi | 1920(RGB)×720, 200PPI |
| area tampilan | 243.648(W)×91.368(H) mm |
| ukuran garis besar | 255.24(W)×106.68(H) mm |
| kecerahan | 800 cd/m² (Typ.) |
| sudut pandang | 80/80/80/80 (Min.)(CR≥10) |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 16.7M 71% NTSC |
| frekuensi | 60Hz |
| berat panel | 380g (Max.) |
| antarmuka sinyal | LVDS (2 ch, 8-bit) , 50 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| model panel | JJ103IA-12A |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | 246.65(W)×94.37(H) mm |
| permukaan | Antiglare |
| rasio kontras | 1300:1 (Typ.) (TM) |
| mode tampilan | IPS, Normally Black, Transmissive |
| waktu merespon | 27 (Typ.)(Tr+Td) |
| jenis lampu | 4 strings WLED , 10K hours , Without Driver |
| layar sentuh | Without |
| aplikasi | Outdoor High Brightness Automotive Display |
