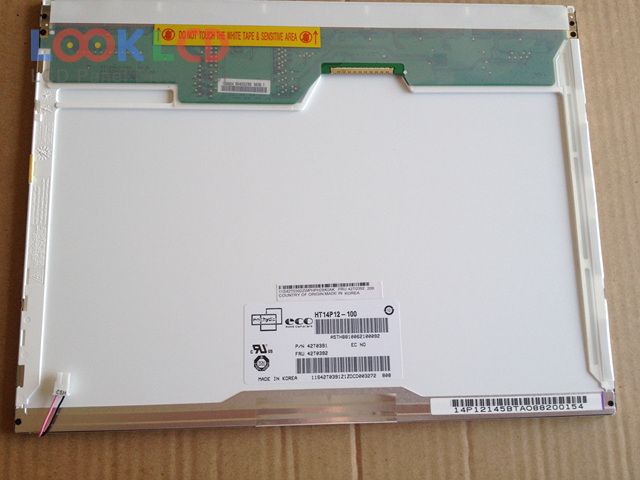

| Nomor Bagian | HT14P12-100 |
| Merek | HYDIS |
| Ukuran | 14.1 |
| Aplikasi | NBPC |
| Resolusi | 1400×1050 |
| Komposisi | LCM |
| Kecerahan | 150 |
| CR | 200:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | BOE HYDIS |
| model panel | HT14P12-100 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 14.1 inch |
| resolusi | 1400(RGB)×1050 , SXGA+ |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 285.6×214.2 mm |
| garis besar | 299×228×5.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | |
| kecerahan | 150 cd/m² (Typ.) |
| rasio kontras | 200:1 (Min.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 25/25 (Max.)(Tr/Td) |
| sudut pandang | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (2 ch, 6-bit), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
| B141PW04 V0 HW1A | AUO | 14.1 | 1440×900 |
| B141PW04 V1 HW0A | AUO | 14.1 | 1440×900 |
| HT14P12-100 | HYDIS | 14.1 | 1400×1050 |
| HT14P12-101 | HYDIS | 14.1 | 1400×1050 |
| LP141WP1-TLA3 | LG Display | 14.1 | 1440×900 |
| LP141WX1-TL01 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TPP1 | LG Display | 14.1 | 1280×800 |
| LTN141AT16-002 | Samsung | 14.1 | 1280×800 |
| N141I3-L05 | Innolux | 14.1 | 1280×800 |
| N141I6-D11 | Innolux | 14.1 | 1280×800 |
| B156XW04 V7 | AUO | 15.6 | 1366×768 |
| LP140WD1-TLM1 | LG Display | 14.0 | 1600×900 |
| LP140WH1-TLC1 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TLP1 | LG Display | 14.1 | 1280×800 |
| LP171WU5-TLB1 | LG Display | 17.1 | 1920×1200 |
| LTN140AT22-W02 | Samsung | 14.0 | 1366×768 |
| LTN145AT01-H01 | Samsung | 14.5 | 1366×768 |
| LTN154X3-L06-6 | Samsung | 15.4 | 1280×800 |
| LTN154XB-L01 | Samsung | 15.4 | 1280×800 |
| N125HCE-GN1 | Innolux | 12.5 | 1920×1080 |
