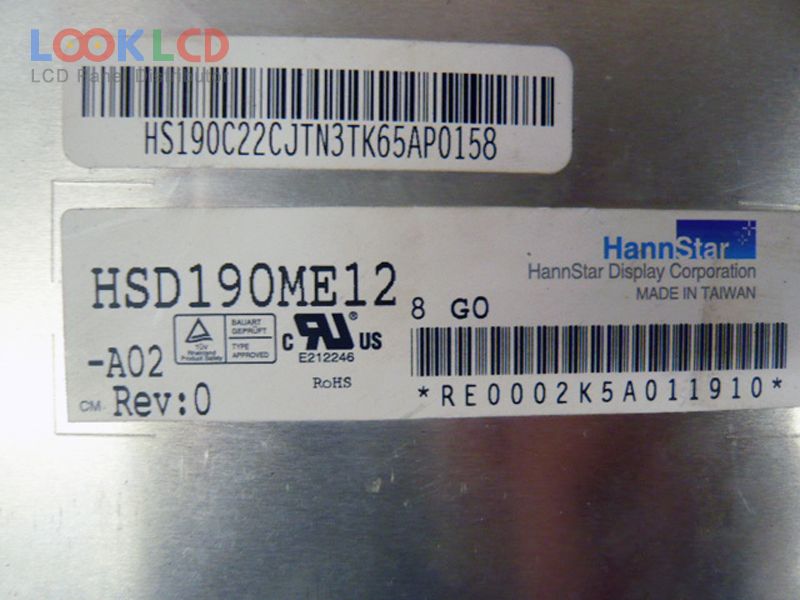

| Nomor Bagian | HSD190ME12-A02 |
| Merek | HannStar |
| Ukuran | 19.0 |
| Aplikasi | DMPC |
| Resolusi | 1280×1024 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 600:1 |
| Warna | 16.2M |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | HannStar |
| model panel | HSD190ME12-A02 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 19.0 inch |
| resolusi | 1280(RGB)×1024 , SXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 376.32×301.056 mm |
| garis besar | 404.2×330 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| rasio kontras | 600:1 (Typ.) |
| menampilkan warna | 16.2M (6-bit + FRC) |
| waktu merespon | 12 (Typ.)(Tr+Td) |
| sudut pandang | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 4 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (2 ch, 8-bit), 30 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | DMPC |
