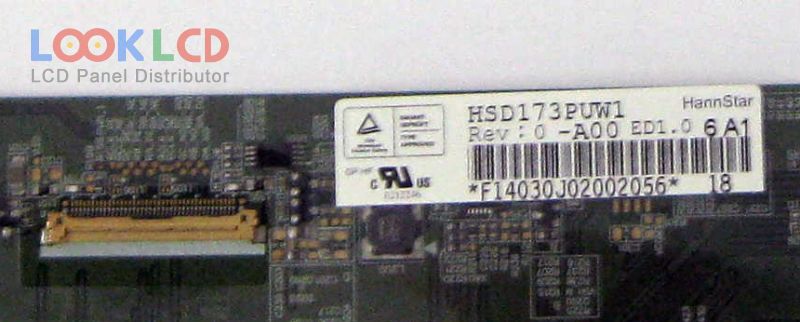

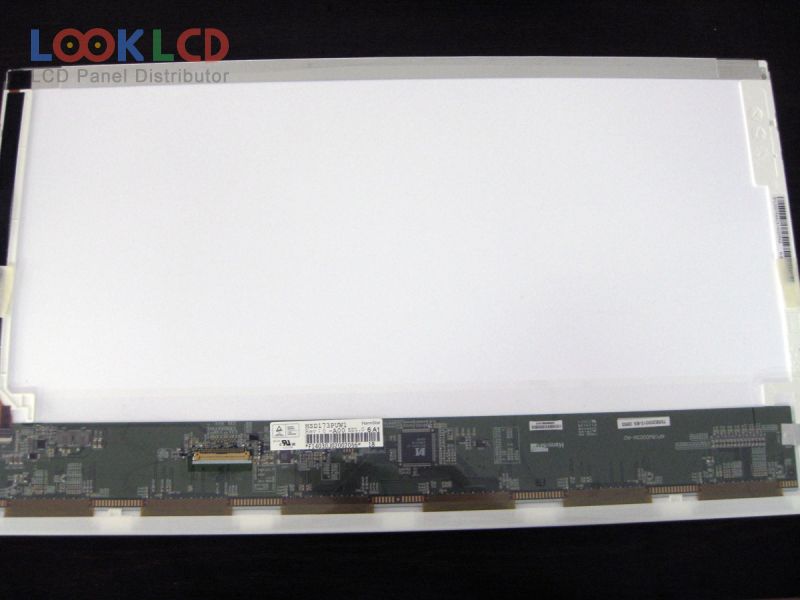

| Nomor Bagian | HSD173PUW1-A00 |
| Merek | HannStar |
| Ukuran | 17.3 |
| Aplikasi | NBPC |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | HannStar |
| model panel | HSD173PUW1-A00 2 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 17.3 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 381.888×214.812 mm |
| garis besar | 398.1×232.8×5.8 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193160% |
| waktu merespon | 2.4/5.6 (Typ.)(Tr/Td) |
| sudut pandang | 80/80/60/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antarmuka sinyal | LVDS (2 ch, 6-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
