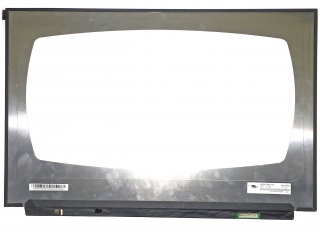

| Nomor Bagian | HSD170PUW1-B00 |
| Merek | HannStar |
| Ukuran | 17.0 |
| Aplikasi | Laptop |
| Resolusi | 1920×1200 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek | HannStar |
| model | HSD170PUW1-B00 |
| ukuran diagonal | 17.0 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1920(RGB)×1200 [WUXGA] 133PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 365.184(H)×228.24(V) mm |
| garis besar redup. | 373.248(H)×241.38(V) ×6(D) mm |
| daerah bezel | - |
| perlakuan | Antiglare |
| pencahayaan | 270 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| Modus operasi | IPS Pro, Normally Black, Transmissive |
| warna pendukung | 16.7M 95% DCI-P3 |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | - |
| dirancang untuk | Laptop |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
