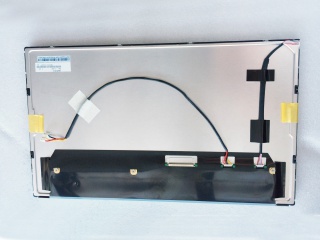

| Nomor Bagian | HSD156JUW1-A00 |
| Merek | HannStar |
| Ukuran | 15.6 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 1920×1080 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | 8S6P |
| Antarmuka | LVDS |
| pabrikan | HannStar |
| nama model | HSD156JUW1-A00 |
| ukuran layar | 15.6 inch |
| tipe layar | LCM , a-Si TFT-LCD |
| nomor piksel | 1920(RGB)×1080 (FHD) 141PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 344.16 × 193.59 (H×V) |
| garis besar (mm) | 363.8 × 215.9 × 12 (H×V×D) |
| area bezel (mm) | 346 × 195.4 (H×V) |
| perlakuan | Antiglare |
| pencahayaan | 850 cd/m² (Typ.) |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tanggapan | 18/17 (Typ.)(Tr/Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | IPS Pro, Normally Black, Transmissive |
| kedalaman warna | 16.7M 70% NTSC |
| lampu latar | 8S6P WLED , 50K hours , With LED Driver |
| massa | TBD |
| digunakan untuk | Industrial Outdoor High Brightness Automotive Display |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| jenis sinyal | LVDS (2 ch, 8-bit) , 30 pins Connector |
| sumber tegangan | 5.0V (Typ.) |
| maks. peringkat | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
