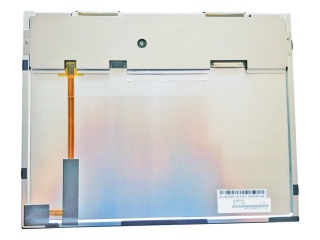

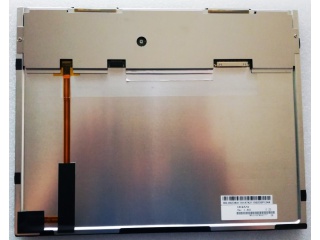

| Nomor Bagian | HSD121KXN1-B00 |
| Merek | HannStar |
| Ukuran | 12.1 |
| Aplikasi | Automotive Display |
| Resolusi | 1024×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | |
| merek | HannStar |
| ukuran diagonal | 12.1 inch |
| format piksel | 1024(RGB)×768 [XGA] 105PPI |
| daerah aktif | 245.76(H)×184.32(V) mm |
| pencahayaan | 600 cd/m² (Typ.) |
| arah pandangan | Symmetry |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| warna pendukung | 16.7M 72% NTSC |
| berat | - |
| kecepatan bingkai | 60Hz |
| model | HSD121KXN1-B00 |
| jenis | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar redup. | - |
| rasio kontras | 900:1 (Typ.) (TM) |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| Modus operasi | IPS Pro, Normally Black, Transmissive |
| sumber cahaya | WLED , 30K hours , With LED Driver |
| dirancang untuk | Automotive Display |
| panel sentuh | Without |
