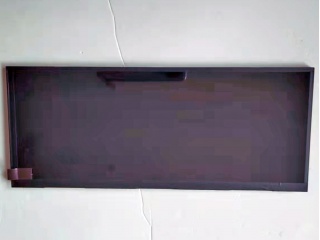

| Nomor Bagian | HSD103JPW2-H10 |
| Merek | HannStar |
| Ukuran | 10.3 |
| Aplikasi | Outdoor High Brightn |
| Resolusi | 1920×720 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1500:1 |
| Warna | 16.7M |
| Lampu latar | 4 |
| Antarmuka | LVDS |
| pabrikan | HannStar |
| ukuran layar | 10.3 inch |
| nomor piksel | 1920(RGB)×720 200PPI |
| area aktif (mm) | 243.648 × 91.368 (H×V) |
| area bezel (mm) | 246.7 × 94.4 (H×V) |
| pencahayaan | 1000 cd/m² (Typ.) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| kedalaman warna | 16.7M 70% NTSC |
| massa | TBD |
| tingkat penyegaran | 60Hz |
| jenis sinyal | LVDS (2 ch, 8-bit) , 60 pins FPC |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| nama model | HSD103JPW2-H10 |
| tipe layar | LCM , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 258.8 × 110 × 17 (H×V×D) |
| perlakuan | Antiglare, Hard coating (3H) |
| rasio kontras | 1500 : 1 (Typ.) (TM) |
| tanggapan | 30 (Max.)(Tr+Td) ms |
| mode kerja | IPS Pro, Normally Black, Transmissive |
| lampu latar | 4 strings WLED , 20K hours , No Driver |
| digunakan untuk | Outdoor High Brightness Automotive Display |
| layar sentuh | Without |
