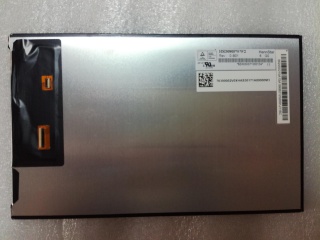

| Nomor Bagian | HSD080PWW2-B01 |
| Merek | HannStar |
| Ukuran | 8.0 |
| Aplikasi | Pad & Tablet Ind |
| Resolusi | 800×1280 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | |
| merek | HannStar |
| model | HSD080PWW2-B01 |
| ukuran diagonal | 8.0 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 800(RGB)×1280 [WXGA] 188PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 107.64(H)×172.224(V) mm |
| garis besar redup. | 114.8(H)×184.7(V) ×3.71(D) mm |
| daerah bezel | - |
| perlakuan | Hard coating (3H) |
| pencahayaan | 450 cd/m² (Typ.) |
| rasio kontras | 800:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| Modus operasi | IPS Pro, Normally Black, Transmissive |
| warna pendukung | 16.7M 60% NTSC |
| sumber cahaya | WLED [7S3P] , 15K hours , W/O Driver |
| berat | 100g (Typ.) |
| dirancang untuk | Pad & Tablet Industrial |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -30 ~ 65 °C |
| AV080WSM-NW0 | BOE | 8.0 | 1024×600 |
| B080EAN01.1 | AUO | 8.0 | 800×1280 |
| LA080WV4-SD03 | LG Display | 8.0 | 800×480 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| LT080EE04000 | TOSHIBA | 8.0 | 1600×768 |
| LT080EE04100 | TOSHIBA | 8.0 | 1600×768 |
| N080ICE-GB0 Rev.C2 | Innolux | 8.0 | 800×1280 |
| TM080SDH01 | Tianma | 8.0 | 800×600 |
| TM080SV-04L01 | SANYO | 8.0 | 800×600 |
| ZJ080NA-08A | Innolux | 8.0 | 1024×600 |
