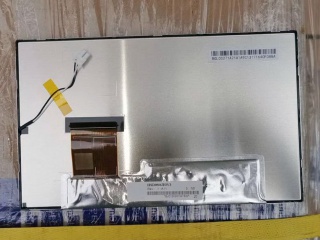

| Nomor Bagian | HSD080JHW3-A11 |
| Merek | HannStar |
| Ukuran | 8.0 |
| Aplikasi | Outdoor High Brightn |
| Resolusi | 1280×720 |
| Komposisi | , a-Si TFT-LCD |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antarmuka | |
| pabrikan | HannStar |
| nama model | HSD080JHW3-A11 |
| ukuran layar | 8.0 inch |
| tipe layar | , a-Si TFT-LCD |
| nomor piksel | 1280(RGB)×720 (WXGA) 184PPI |
| pengaturan | RGB Vertical Stripe |
| area aktif (mm) | 176.64 × 99.36 (H×V) |
| garis besar (mm) | - |
| area bezel (mm) | - |
| perlakuan | Antireflection |
| pencahayaan | 1000 cd/m² (Typ.) |
| rasio kontras | 800 : 1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| tanggapan | 17/18 (Typ.)(Tr/Td) ms |
| pemandangan bagus di | Symmetry |
| mode kerja | IPS Pro, Normally Black, Transmissive |
| kedalaman warna | 262K/16.7M |
| lampu latar | WLED , No Driver |
| massa | - |
| digunakan untuk | Outdoor High Brightness Automotive Display |
| tingkat penyegaran | 60Hz |
| layar sentuh | Without |
| Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| AT080TN01 | Innolux | 8.0 | 800×480 |
| C080VW02 V0 | AUO | 8.0 | 800×480 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| LB080WV3-B1 | LG Display | 8.0 | 800×480 |
| LQ080T3AG01 | SHARP | 8.0 | 480×234 |
| LQ080Y5DW30 | SHARP | 8.0 | 800×480 |
| LSL080AL02-002 | Samsung | 8.0 | 800×1280 |
| PW080XU4 | E Ink | 8.0 | 480×220 |
| TX20D28VM2BAB | KOE | 8.0 | 800×480 |
