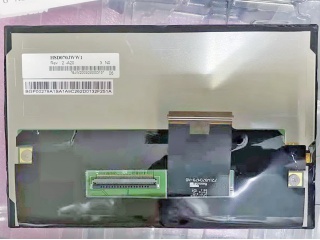

| Nomor Bagian | HSD070JWW1-A20 |
| Merek | HannStar |
| Ukuran | 7.0 |
| Aplikasi | Automotive Display |
| Resolusi | 1280×768 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | HannStar |
| ukuran panel | 7.0" |
| resolusi | 1280(RGB)×768, WXGA, 213PPI |
| area tampilan | 152.448(W)×91.4688(H) mm |
| kecerahan | - |
| sudut pandang | - |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 16.7M |
| frekuensi | 60Hz |
| berat panel | - |
| antarmuka sinyal | LVDS (1 ch, 8-bit) + SPI , 60 pins FPC |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| model panel | HSD070JWW1-A20 |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| rasio kontras | 1000:1 (Min.) (TM) |
| mode tampilan | IPS Pro, Normally Black, Transmissive |
| waktu merespon | 25 (Max.)(Tr+Td) |
| jenis lampu | WLED |
| layar sentuh | - |
| aplikasi | Automotive Display |
