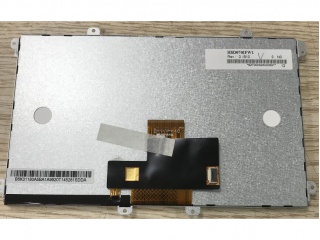

| Nomor Bagian | HSD070IFW1-B10 |
| Merek | HannStar |
| Ukuran | 7.0 |
| Aplikasi | Automotive Display |
| Resolusi | 1024×600 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | |
| merek panel | HannStar |
| ukuran panel | 7.0" |
| resolusi | 1024(RGB)×600, WSVGA, 170PPI |
| area tampilan | 153.6(W)×86.64(H) mm |
| kecerahan | - |
| sudut pandang | - |
| tampilan terbaik di | - |
| menampilkan warna | 16.7M |
| frekuensi | - |
| berat | - |
| model panel | HSD070IFW1-B10 |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| rasio kontras | 800:1 (Typ.) (TM) |
| mode tampilan | TN, Normally White, Transmissive |
| waktu merespon | - |
| jenis lampu | WLED |
| layar sentuh | Without |
| aplikasi | Automotive Display |
