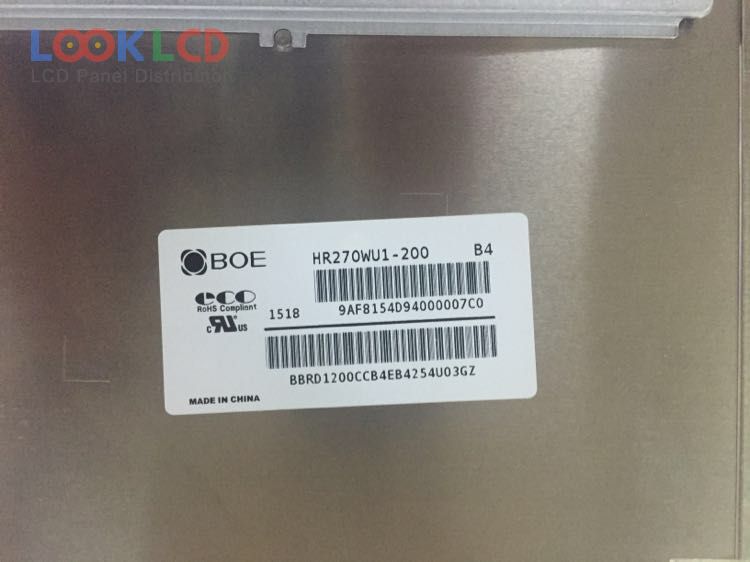

| Nomor Bagian | HR270WU1-200 |
| Merek | BOE |
| Ukuran | 27.0 |
| Aplikasi | DMPC |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 700 |
| CR | 1000:1 |
| Warna | 1.07B |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | BOE |
| model panel | HR270WU1-200 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 27.0 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mode tampilan | AFFS, Normally Black, Transmissive |
| daerah aktif | 597.888×336.312 mm |
| garis besar | 630×368.2×15.7 mm |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 700 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) |
| menampilkan warna | 1.07B (10-bit), sRGB |
| waktu merespon | 14 (Typ.)(G to G) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antarmuka sinyal | LVDS (2 ch, 10-bit), 51 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | DMPC |
