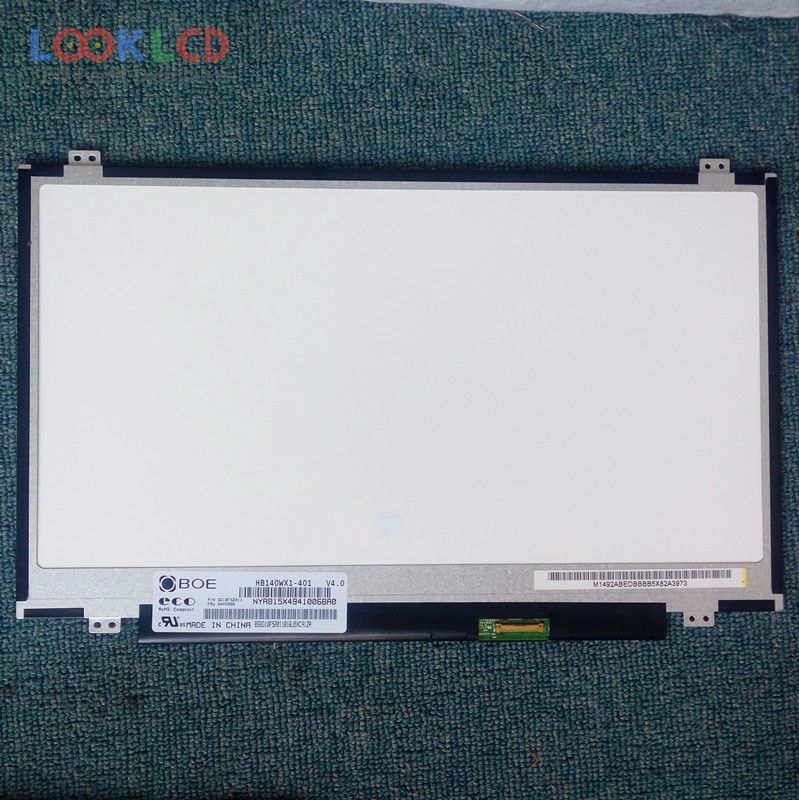

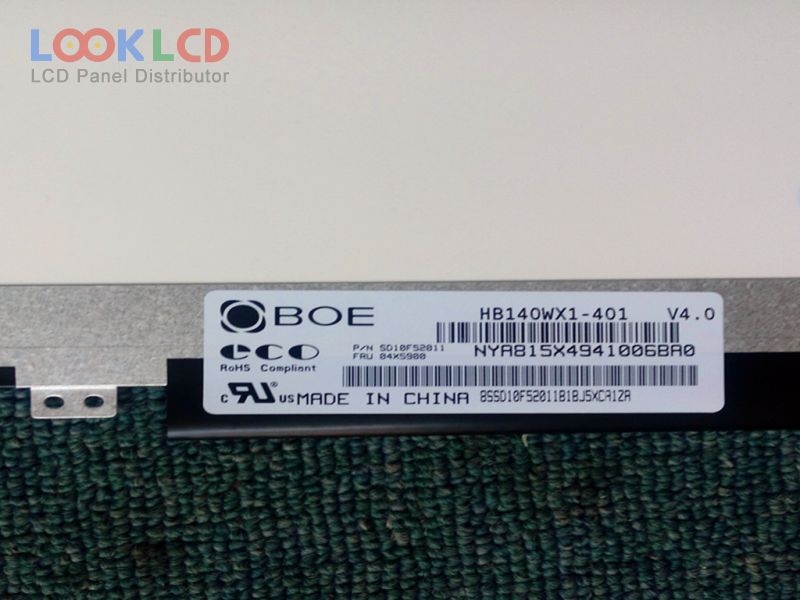

| Nomor Bagian | HB140WX1-401 |
| Merek | BOE |
| Ukuran | 14.0 |
| Aplikasi | NBPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek panel | BOE |
| model panel | HB140WX1-401 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 14.0 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 309.399×173.952 mm |
| garis besar | 320.9×187.6×3.6 mm |
| gaya bentuk | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 200 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193145% |
| waktu merespon | 12 (Typ.)(Tr+Td) |
| sudut pandang | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 9S4PWLEDEmbedded (LED Driver) |
| antarmuka sinyal | eDP (1 Lane), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
