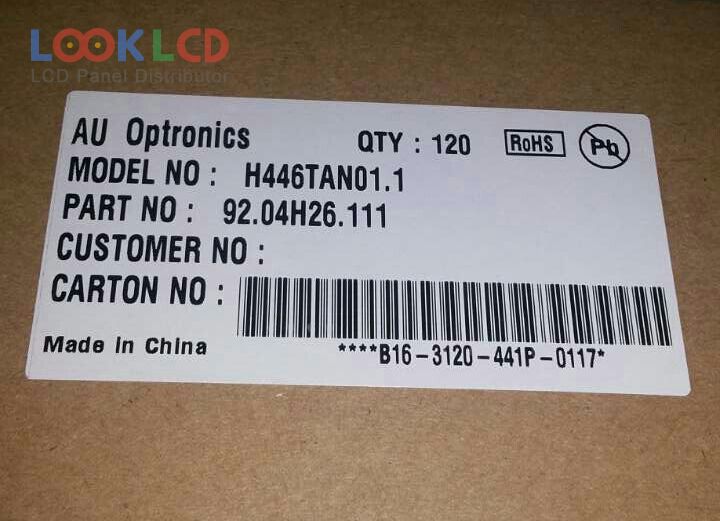

| Nomor Bagian | H446TAN01.1 |
| Merek | AUO |
| Ukuran | 4.5 |
| Aplikasi | MPH |
| Resolusi | 720×1280 |
| Komposisi | CELL |
| Kecerahan | 0 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | No B/L |
| Antarmuka | |
| merek panel | AUO |
| model panel | H446TAN01.1 2 Compatible model |
| tipe panel | LTPS TFT-LCD , CELL |
| ukuran panel | 4.5 inch |
| resolusi | 720(RGB)×1280 , WXGA |
| mode tampilan | AHVA, Normally Black, Transmissive |
| daerah aktif | 55.512×98.688 mm |
| garis besar | 58.74×106.73 mm |
| permukaan | Antireflection |
| kedalaman kaca | 0.20+0.20 mm |
| keterusan | 4.0% (Typ.)(with Polarizer) |
| rasio kontras | 800:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193170% |
| waktu merespon | 20/20 (Typ.)(Tr/Td) |
| sudut pandang | 70/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| ic pengemudi | COG Built-in OTM1281A |
| aplikasi | MPH |
