| Nomor Bagian | GT101WSM-N10 |
| Merek | BOE |
| Ukuran | 10.1 |
| Aplikasi | Industrial |
| Resolusi | 1024×600 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 262K/16.7M |
| Lampu latar | 4 |
| Antarmuka | |
| merek panel | BOE |
| ukuran panel | 10.1" |
| resolusi | 1024(RGB)×600, WSVGA, 117PPI |
| area tampilan | 222.72(W)×125.28(H) mm |
| ukuran garis besar | 235(W)×143(H) mm |
| kecerahan | 350 cd/m² (Typ.) |
| sudut pandang | 70/70/0/60 (Typ.)(CR≥10) |
| tampilan terbaik di | - |
| menampilkan warna | 262K/16.7M 50% NTSC |
| frekuensi | 60Hz |
| berat | 180g (Typ.) |

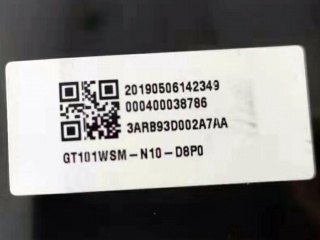

| model panel | GT101WSM-N10 |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | 225.92(W)×128.48(H) mm |
| permukaan | - |
| rasio kontras | 500:1 (Typ.) (TM) |
| mode tampilan | TN, Normally White, Transmissive |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| jenis lampu | 4 strings WLED , With LED Driver |
| layar sentuh | Without |
| aplikasi | Industrial |
| AM-19201200B1TZQW-T00 | AMPIRE | 10.1 | 1920×1200 |
| B101AW03 V1 | AUO | 10.1 | 1024×600 |
| B101EAN01.6 | AUO | 10.1 | 1280×800 |
| B101XAN02.0 | AUO | 10.1 | 1366×768 |
| HJ101IA-01I | Innolux | 10.1 | 1280×800 |
| HSD101PFW2-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PHW1-A00 | HannStar | 10.1 | 1366×768 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| HV101WU1-1E3 | HYDIS | 10.1 | 1920×1200 |
| M101NWT2 R3 | IVO | 10.1 | 1024×600 |
