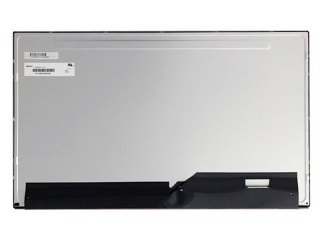

| Nomor Bagian | G238HCJ-L01 |
| Merek | Innolux |
| Ukuran | 23.8 |
| Aplikasi | Industrial |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek | Innolux |
| model | G238HCJ-L01 |
| ukuran diagonal | 23.8 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1920(RGB)×1080 [FHD] 92PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 527.04(H)×296.46(V) mm |
| garis besar redup. | 543(H)×317.4(V) mm |
| daerah bezel | 530.2(H)×299.6(V) mm |
| perlakuan | Antiglare (Haze 25%), Hard coating (3H) |
| pencahayaan | 350 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 8/7 (Typ.)(Tr/Td) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| Modus operasi | AAS, Normally Black, Transmissive |
| warna pendukung | 16.7M 72% NTSC |
| sumber cahaya | WLED , 30K hours , W/O Driver |
| berat | 2.71Kgs (Typ.) |
| dirancang untuk | Industrial |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Sumber Daya listrik | 5.0±0.5V |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
