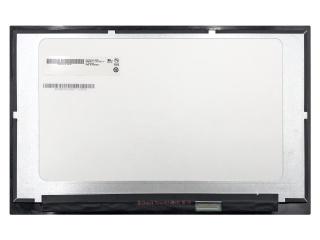

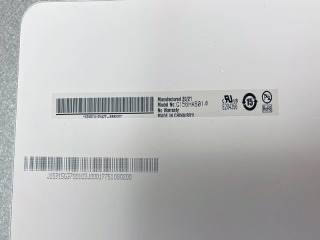

| Nomor Bagian | G156HAB01.0 |
| Merek | AUO |
| Ukuran | 15.6 |
| Aplikasi | Industrial |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD , Assem |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek panel | AUO |
| ukuran panel | 15.6" |
| resolusi | 1920(RGB)×1080, FHD, 141PPI |
| area tampilan | 344.16(W)×193.59(H) mm |
| ukuran garis besar | 361(W)×227(H) ×4.9(D) mm |
| kecerahan | 300 cd/m² (Typ.) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| tampilan terbaik di | Symmetry |
| menampilkan warna | 16.2M 45% NTSC |
| frekuensi | 60Hz |
| berat panel | 620g (Max.) |
| antarmuka sinyal | eDP (2 Lanes) , eDP1.2 , 40 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| model panel | G156HAB01.0 |
| tipe panel | a-Si TFT-LCD , Assembly |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | - |
| permukaan | Hard coating (7H) |
| rasio kontras | 800:1 (Typ.) (TM) |
| mode tampilan | - |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| jenis lampu | WLED , 30K hours , With LED Driver |
| layar sentuh | On-Cell Touch |
| aplikasi | Industrial |
| G156HAN01.0 | AUO | 15.6 | 1920×1080 |
| G156HTD01.0 | AUO | 15.6 | 1920×1080 |
| G156HTN01.0 | AUO | 15.6 | 1920×1080 |
| G156HTN02.0 | AUO | 15.6 | 1920×1080 |
| G156HTN02.1 | AUO | 15.6 | 1920×1080 |
| LP156WF1-TLF4 | LG Display | 15.6 | 1920×1080 |
| LP156WF7-SPB2 | LG Display | 15.6 | 1920×1080 |
| LTN156AT36-W01 | Samsung | 15.6 | 1366×768 |
| N156BGE-E21 | Innolux | 15.6 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
