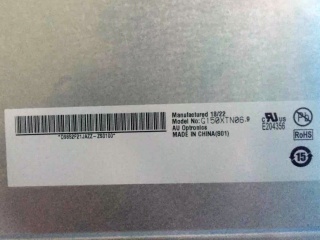

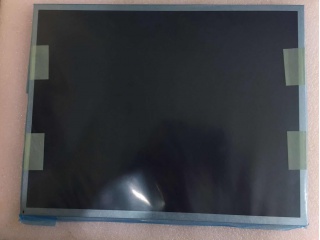

| Nomor Bagian | G150XTN06.9 |
| Merek | AUO |
| Ukuran | 15.0 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 1024×768 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K/16.2M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek | AUO |
| model | G150XTN06.9 |
| ukuran diagonal | 15.0 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1024(RGB)×768 [XGA] 85PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 304.128(H)×228.096(V) mm |
| garis besar redup. | 326.5(H)×253.5(V) ×10(D) mm |
| daerah bezel | 311.9(H)×236.85(V) mm |
| perlakuan | Antiglare |
| pencahayaan | 1600 cd/m² (Typ.) |
| rasio kontras | 800:1 (Typ.) (TM) |
| arah pandangan | - |
| waktu merespon | 5.7/2.3 (Typ.)(Tr/Td) |
| sudut pandang | 80/80/70/80 (Typ.)(CR≥10) |
| Modus operasi | TN, Normally White, Transmissive |
| warna pendukung | 262K/16.2M 60% NTSC |
| sumber cahaya | WLED , 50K hours , With LED Driver |
| berat | 1.00Kgs (Max.) |
| dirancang untuk | Industrial Outdoor High Brightness |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 70 °C |
