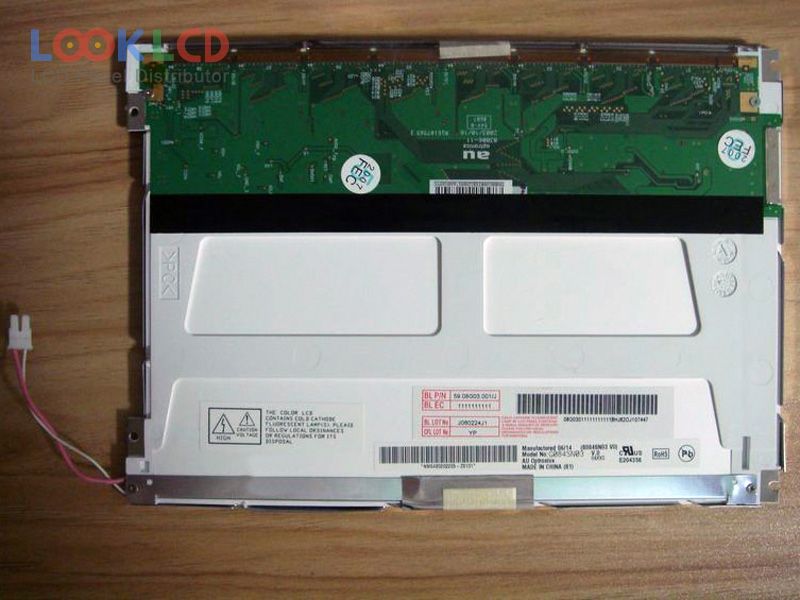

| Nomor Bagian | G084SN03 V2 |
| Merek | AUO |
| Ukuran | 8.4 |
| Aplikasi | IA |
| Resolusi | 800×600 |
| Komposisi | LCM |
| Kecerahan | 180 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | AUO |
| model panel | G084SN03 V2 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 8.4 inch |
| resolusi | 800(RGB)×600 , SVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 170.4×127.8 mm |
| garis besar | 203×142.5 mm |
| permukaan | |
| kecerahan | 180 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 10/25 (Typ.)(Tr/Td) |
| sudut pandang | 65/65/65/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 20 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | IA |
| G084SN02 V0 | AUO | 8.4 | 800×600 |
| G084SN03 V0 | AUO | 8.4 | 800×600 |
| G084SN03 V1 | AUO | 8.4 | 800×600 |
| G084SN03 V2 | AUO | 8.4 | 800×600 |
| G084SN03 V3 | AUO | 8.4 | 800×600 |
| G084SN05 V3 | AUO | 8.4 | 800×600 |
| G084SN05 V5 | AUO | 8.4 | 800×600 |
| G084SN05 V7 | AUO | 8.4 | 800×600 |
| G084SN05 V8 | AUO | 8.4 | 800×600 |
| G084SN05 V9 | AUO | 8.4 | 800×600 |
| AC121SA01 | Mitsubishi | 12.1 | 800×600 |
| AM-800480RCTMQW-00H | AMPIRE | 7.0 | 800×480 |
| DLC1010DZG-T-8 | Other | 10.1 | 1280×800 |
| DLC1210BBG | Other | 12.1 | 800×600 |
| EG4401S-ER | Epson | 5.3 | 256×128 |
| KCG057QV1DB-G760 | Kyocera | 5.7 | 320×240 |
| LM-CK53-22NFR | SANYO | 9.4 | 640×480 |
| LQ9D340 | SHARP | 8.4 | 640×480 |
| LTM09C016K | TOSHIBA | 9.4 | 640×480 |
| NL10276AC30-42C | NLT | 15.0 | 1024×768 |
