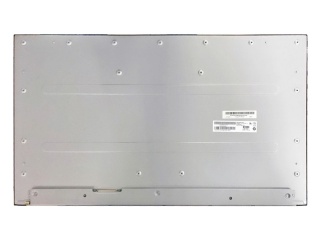

| Nomor Bagian | G070VAN01.1 |
| Merek | AUO |
| Ukuran | 7.0 |
| Aplikasi | Industrial |
| Resolusi | 800×480 |
| Komposisi | LCM , a-Si TFT-LCD |
| Kecerahan | |
| CR | 1300:1 |
| Warna | 262K/16.7M |
| Lampu latar | 7S2P |
| Antarmuka | LVDS |
| pabrikan | AUO |
| ukuran layar | 7.0 inch |
| nomor piksel | 800×480(RGB) (WVGA) 133PPI |
| area aktif (mm) | 152.4 × 91.44 (H×V) |
| area bezel (mm) | 154.2 × 93.24 (H×V) |
| pencahayaan | 200 cd/m² (Typ.) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| kedalaman warna | 262K/16.7M 60% NTSC |
| massa | 160g (Typ.) |
| tingkat penyegaran | 60Hz |
| jenis sinyal | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| nama model | G070VAN01.1 |
| tipe layar | LCM , a-Si TFT-LCD |
| pengaturan | RGB Horizontal Stripe |
| garis besar (mm) | 166.6 × 107 × 10 (H×V×D) |
| perlakuan | Antiglare |
| rasio kontras | 1300 : 1 (Typ.) (TM) |
| tanggapan | 11/19 (Max.)(Tr/Td) ms |
| mode kerja | AHVA, Normally Black, Transmissive |
| lampu latar | 7S2P WLED , 30K hours , No Driver |
| digunakan untuk | Industrial |
| layar sentuh | Without |
| G070VTN01.0 | AUO | 7.0 | 800×480 |
| G070VTT01.0 | AUO | 7.0 | 800×480 |
| G070VVN01.0 | AUO | 7.0 | 800×480 |
| G070VVN01.1 | AUO | 7.0 | 800×480 |
| G070VW01 V0 | AUO | 7.0 | 800×480 |
| G070VW01 V1 | AUO | 7.0 | 800×480 |
| HE070IA-04M | Innolux | 7.0 | 800×1280 |
| N070ICN-GB1 | Innolux | 7.0 | 800×1280 |
| TM070JDHP01-00 | Tianma | 7.0 | 1280×800 |
| TX18D40VM1CAA | KOE | 7.0 | 800×480 |
