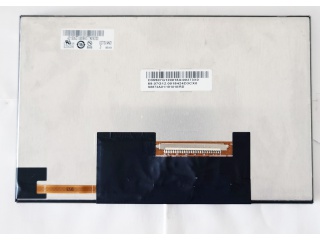

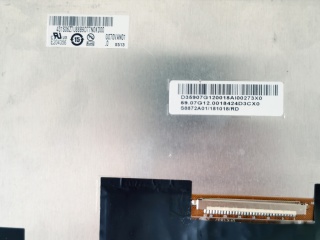

| Nomor Bagian | G070VAN01.0 |
| Merek | AUO |
| Ukuran | 7.0 |
| Aplikasi | Industrial |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1300:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek | AUO |
| model | G070VAN01.0 |
| ukuran diagonal | 7.0 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 800×480(RGB) [WVGA] 133PPI |
| konfigurasi | RGB Horizontal Stripe |
| daerah aktif | 152.4(H)×91.44(V) mm |
| garis besar redup. | 166.6(H)×107(V) ×10(D) mm |
| daerah bezel | 154.2(H)×93.24(V) mm |
| perlakuan | Antiglare |
| pencahayaan | 480 cd/m² (Typ.) |
| rasio kontras | 1300:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 11/19 (Max.)(Tr/Td) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| Modus operasi | AHVA, Normally Black, Transmissive |
| warna pendukung | 262K/16.7M 70% NTSC |
| sumber cahaya | WLED [7S2P] , 50K hours , W/O Driver |
| berat | 175±10%g |
| dirancang untuk | Industrial |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
