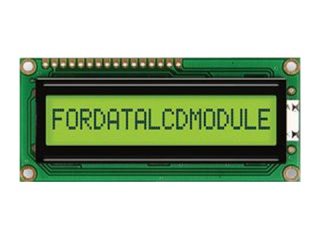

| Nomor Bagian | FC1601E01-FHYYBW-51LR |
| Merek | Fordata |
| Ukuran | 2.4 |
| Aplikasi | Instruments & Meters |
| Resolusi | 5×8 |
| Komposisi | STN-LCD , LCM |
| Kecerahan | |
| CR | 10:1 |
| Warna | Monochrome |
| Lampu latar | YG-LED |
| Antarmuka | 8-bit |
| merek | Fordata |
| ukuran diagonal | 2.4 inch |
| format char | 5×8 dots |
| ukuran huruf | 3.07×6.56 mm |
| daerah aktif | 59.62(H)×6.56(V) mm |
| daerah bezel | 64.5(H)×13.8(V) mm |
| pencahayaan | - |
| arah pandangan | 6 o'clock |
| sudut pandang | - |
| warna pendukung | Monochrome |
| berat | - |
| kecepatan bingkai | - |
| tipe antarmuka | 8-bit parallel , 16 pins Pad |
| Sumber Daya listrik | 5.0V (Typ.) |
| lingkungan | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | FC1601E01-FHYYBW-51LR |
| jenis | STN-LCD , LCM |
| nada huruf | 3.77×6.56 mm |
| garis besar redup. | 80(H)×36(V) ×13.5(D) mm |
| perlakuan | - |
| rasio kontras | 10:1 (Typ.) (TM) |
| waktu merespon | 150/150 (Typ.)(Tr/Td) |
| Modus operasi | STN, Yellow/Green (Positive), Transflective |
| sumber cahaya | YG-LED , 20K hours , W/O Driver |
| dirancang untuk | Instruments & Meters |
| panel sentuh | Without |
