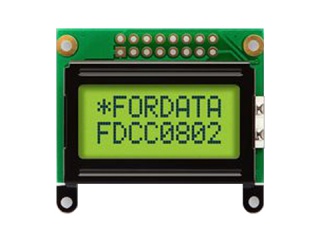

| Nomor Bagian | FC0802C00-FHYYBW-51LR |
| Merek | Fordata |
| Ukuran | 1.1 |
| Aplikasi | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | STN-LCD, LCM |
| Kecerahan | |
| CR | 10:1 |
| Warna | Monochrome |
| Lampu latar | YG-LED |
| Antarmuka | 8-bit |
| merek | Fordata |
| model | FC0802C00-FHYYBW-51LR |
| ukuran diagonal | 1.1 inch |
| jenis | STN-LCD, LCM |
| format char | 5×8 dots |
| ukuran huruf | 2.95×4.75 mm |
| nada huruf | 3.35×5.15 mm |
| daerah aktif | 26.4(H)×9.9(V) mm |
| garis besar redup. | 40(H)×35.4(V) ×13(D) mm |
| daerah bezel | 30.4(H)×13.9(V) mm |
| perlakuan | - |
| pencahayaan | - |
| rasio kontras | 10:1 (Typ.) (TM) |
| arah pandangan | 6 o'clock |
| waktu merespon | 150/150 (Typ.)(Tr/Td) |
| sudut pandang | - |
| Modus operasi | STN, Yellow/Green (Positive), Transflective |
| warna pendukung | Monochrome |
| sumber cahaya | YG-LED , 20K hours , W/O Driver |
| berat | - |
| dirancang untuk | Instruments & Meters |
| kecepatan bingkai | - |
| panel sentuh | Without |
| tipe antarmuka | 8-bit parallel , 16 pins Pad |
| Sumber Daya listrik | 5.0V (Typ.) |
| lingkungan | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
