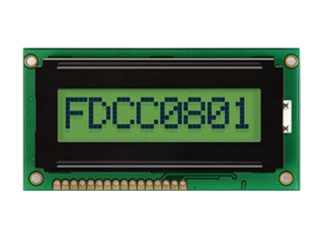

| Nomor Bagian | FC0801A04-RNNYBW-16LE |
| Merek | Fordata |
| Ukuran | 2.3 |
| Aplikasi | Instruments & Me |
| Resolusi | 5×8 |
| Komposisi | STN-LCD, LCM |
| Kecerahan | |
| CR | 10:1 |
| Warna | Monochrome |
| Lampu latar | No |
| Antarmuka | |
| merek | Fordata |
| model | FC0801A04-RNNYBW-16LE |
| ukuran diagonal | 2.3 inch |
| jenis | STN-LCD, LCM |
| format char | 5×8 dots |
| ukuran huruf | 6.45×10.75 mm |
| nada huruf | 7.15×10.75 mm |
| daerah aktif | 56.5(H)×10.75(V) mm |
| garis besar redup. | 84(H)×44(V) ×10(D) mm |
| daerah bezel | 61.0(H)×15.8(V) mm |
| perlakuan | - |
| pencahayaan | - |
| rasio kontras | 10:1 (Typ.) (TM) |
| arah pandangan | 6 o'clock |
| waktu merespon | 150/150 (Typ.)(Tr/Tf) |
| sudut pandang | - |
| Modus operasi | STN, Yellow/Green (Positive), Reflective |
| warna pendukung | Monochrome |
| sumber cahaya | No B/L |
| berat | - |
| dirancang untuk | Instruments & Meters |
| kecepatan bingkai | - |
| panel sentuh | Without |
| Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
