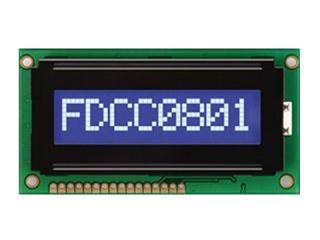

| Nomor Bagian | FC0801A04-NSWBBW-91LE |
| Merek | Fordata |
| Ukuran | 2.3 |
| Aplikasi | Instruments & Meters |
| Resolusi | 8×13 |
| Komposisi | STN-LCD , LCM |
| Kecerahan | |
| CR | 10:1 |
| Warna | Monochrome |
| Lampu latar | WLED |
| Antarmuka | |
| merek panel | Fordata |
| ukuran panel | 2.3" |
| format tampilan | 8 characters × 1 lines, 3PPI |
| ukuran karakter | 6.45×10.75(W×H) mm |
| area tampilan | 56.5(W)×10.75(H) mm |
| ukuran garis besar | 84(W)×44(H) ×13.5(D) mm |
| kecerahan | - |
| sudut pandang | - |
| tampilan terbaik di | 6 o'clock |
| menampilkan warna | Monochrome |
| frekuensi | - |
| berat | - |
| model panel | FC0801A04-NSWBBW-91LE |
| tipe panel | STN-LCD , LCM |
| format huruf | 5×8 dots |
| nada karakter | 7.15×10.75(W×H) mm |
| bukaan bezel | 61.0(W)×15.8(H) mm |
| permukaan | - |
| rasio kontras | 10:1 (Typ.) (TM) |
| mode tampilan | STN, Blue mode (Negative), Transmissive |
| waktu merespon | 150/150 (Typ.)(Tr/Tf) |
| jenis lampu | WLED , 9K hours , Without Driver |
| layar sentuh | Without |
| aplikasi | Instruments & Meters |
