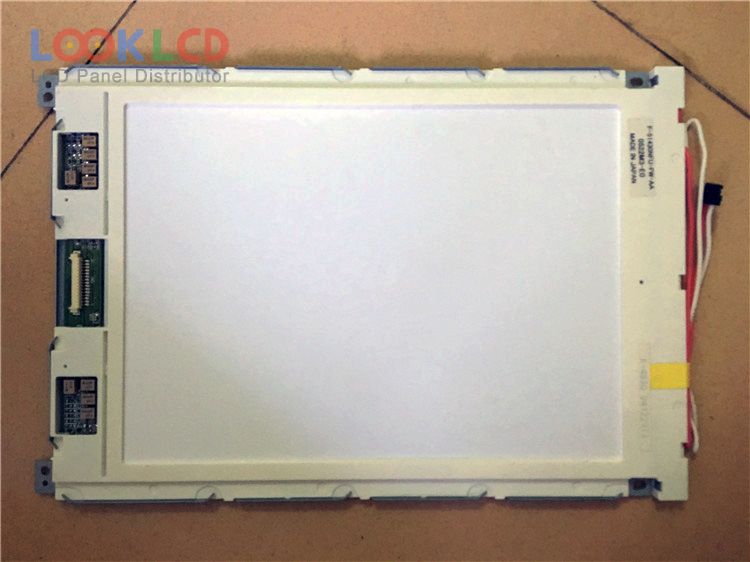

| Nomor Bagian | F-51430NFU-FW-AA |
| Merek | Kyocera |
| Ukuran | 9.4 |
| Aplikasi | IA |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 110 |
| CR | 14:1 |
| Warna | Monochrome |
| Lampu latar | CCFL |
| Antarmuka | Parallel Data |
| merek panel | OPTREX |
| model panel | F-51430NFU-FW-AA |
| tipe panel | FSTN-LCD , LCM |
| ukuran panel | 9.4 inch |
| resolusi | 640×480 , VGA |
| mode tampilan | STN, Black/White mode, Transmissive |
| daerah aktif | 191.97×143.97 mm |
| garis besar | 260×174×8.5 mm |
| permukaan | |
| kecerahan | 110 cd/m² (Typ.) |
| rasio kontras | 14:1 (Typ.) |
| menampilkan warna | Monochrome (1-bit) |
| waktu merespon | 210/120 (Typ.)(Tr/Td) |
| sudut pandang | 60/60/23/32 (Typ.)(CR≥2)(L/R/U/D) |
| frekuensi | 70Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | Parallel Data (2ch, 4-bit), 15 pins |
| tegangan masukan | 2.5/5.5V (Min./Max.) |
| aplikasi | IA |
