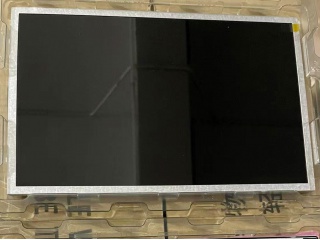

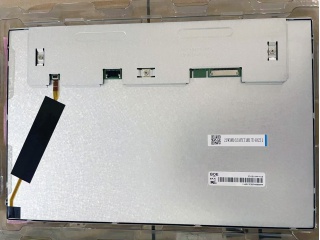

| Nomor Bagian | EV121WXM-N12 |
| Merek | BOE |
| Ukuran | 12.1 |
| Aplikasi | Medical Imaging |
| Resolusi | 1280×800 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1200:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek | BOE |
| model | EV121WXM-N12 |
| ukuran diagonal | 12.1 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1280(RGB)×800 [WXGA] 124PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 261.12(H)×163.2(V) mm |
| garis besar redup. | 277.7(H)×180.6(V) ×9.2(D) mm |
| daerah bezel | 264.12(H)×166.2(V) mm |
| perlakuan | Antiglare (Haze 25%) |
| pencahayaan | 500 cd/m² (Typ.) |
| rasio kontras | 1200:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| Modus operasi | ADS, Normally Black, Transmissive |
| warna pendukung | 262K/16.7M 100% sRGB |
| sumber cahaya | WLED [12S4P] , 50K hours , With LED Driver |
| berat | TBD |
| dirancang untuk | Medical Imaging |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
