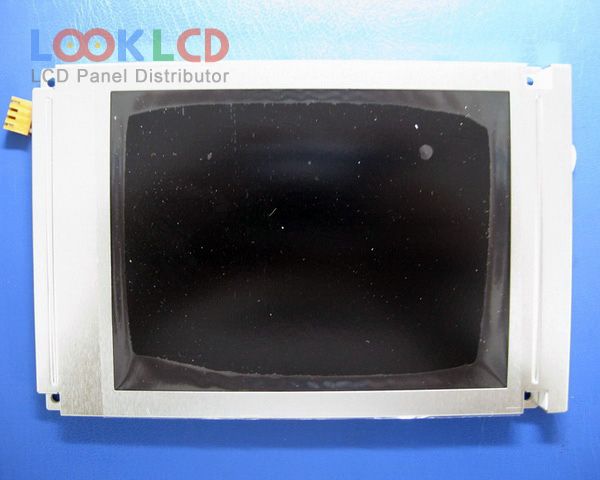

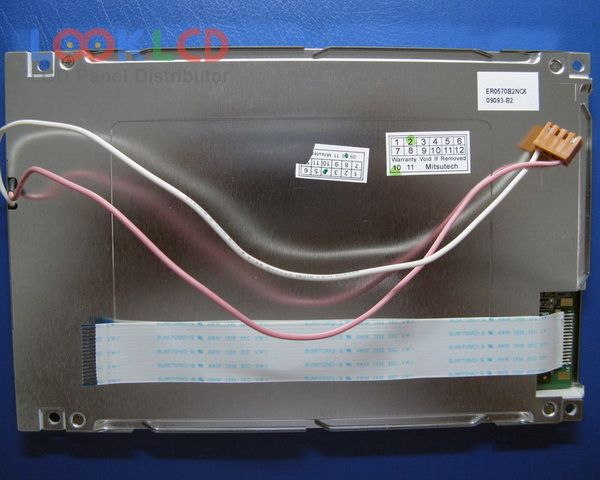

| Nomor Bagian | ER0570B2NC6 |
| Merek | EDT |
| Ukuran | 5.7 |
| Aplikasi | IA |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | 150 |
| CR | 50:1 |
| Warna | Color |
| Lampu latar | CCFL |
| Antarmuka | Parallel Data |
| merek panel | EDT |
| model panel | ER0570B2NC6 |
| tipe panel | CSTN-LCD , LCM |
| ukuran panel | 5.7 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mode tampilan | STN, Normally Black, Transmissive |
| daerah aktif | 115.17×86.37 mm |
| garis besar | 167×109×9.4 mm |
| permukaan | |
| kecerahan | 150 cd/m² (Typ.) |
| rasio kontras | 50:1 (Typ.) |
| menampilkan warna | Color |
| waktu merespon | 350/250 (Typ.)(Tr/Td) |
| sudut pandang | 40/40/20/40 (Min.)(CR≥2)(L/R/U/D) |
| frekuensi | 120Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | Parallel Data (8-bit), 16 pins |
| tegangan masukan | 3.3/5.0V (Typ.)(VDD) |
| aplikasi | IA |
