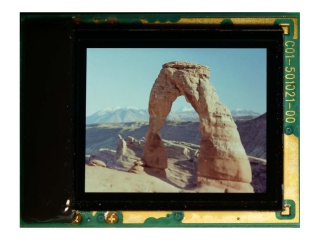

| Nomor Bagian | EMA-101204-01 |
| Merek | eMagin |
| Ukuran | 0.63 |
| Aplikasi | HMD VR AR |
| Resolusi | 1280×1024 |
| Komposisi | Si-OLED, OLED |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | self |
| Antarmuka | LVDS |
| merek panel | eMagin |
| model panel | EMA-101204-01 |
| ukuran panel | 0.63" |
| tipe panel | Si-OLED, OLED |
| resolusi | 1280(RGB)×1024, SXGA, 2619PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 12.4(W)×9.945(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 19.5(W)×14.8(H) ×5.4(D) mm |
| permukaan | - |
| kecerahan | 700 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| sudut pandang | - |
| mode tampilan | - |
| tampilan terbaik di | Symmetry |
| waktu merespon | - |
| menampilkan warna | 16.7M 52% NTSC |
| jenis lampu | self |
| frekuensi | - |
| layar sentuh | Without |
| berat panel | 3.00g (Max.) |
| aplikasi | HMD VR AR |
| antarmuka sinyal | LVDS (1 ch, 8-bit) , 30 pins Connector |
| tegangan masukan | 5/1.8/-1.5V (Typ.)(VDC/VDD/VPG) |
| lingkungan | Operating Temp.: -45 ~ 70 °C ; Storage Temp.: -55 ~ 90 °C |
