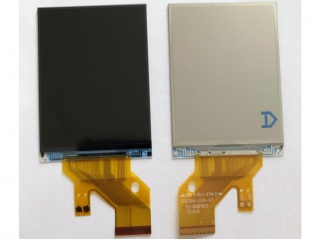

| Nomor Bagian | EE030IA-03A |
| Merek | Chimei Innolux |
| Ukuran | 3.0 |
| Aplikasi | Digital Still Camera |
| Resolusi | 640×480 |
| Komposisi | CELL , a-Si TFT-LC |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | No |
| Antarmuka | YUV |
| pabrikan | Chimei Innolux |
| ukuran layar | 3.0 inch |
| nomor piksel | 640×480(RGB) (VGA) 270PPI |
| area aktif (mm) | 60 × 45 (H×V) |
| area bezel (mm) | - |
| pencahayaan | 0 cd/m² |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| ketebalan kaca | 0.25+0.25 mm |
| kedalaman warna | 16.7M 60% NTSC |
| massa | 5.89g (Typ.) |
| tingkat penyegaran | 60Hz |
| jenis sinyal | YUV (16-bit) , 51 pins FPC |
| sumber tegangan | 1.8/3.1V (VDDIO/VDD) |
| maks. peringkat | Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
| nama model | EE030IA-03A |
| tipe layar | CELL , a-Si TFT-LCD |
| pengaturan | RGB Horizontal Stripe |
| garis besar (mm) | 69 × 49 × 0.8 (H×V×D) |
| perlakuan | Hard coating |
| rasio kontras | 800 : 1 (Typ.) (TM) |
| tanggapan | 35 (Typ.)(Tr+Td) ms |
| mode kerja | IPS, Normally Black, Transmissive |
| keterusan | 4.5% (Typ.)(with Polarizer) |
| lampu latar | No B/L , No Driver |
| digunakan untuk | Digital Still Camera Digital Video Camera |
| layar sentuh | Without |
| A030DN01 V0 | AUO | 3.0 | 320×240 |
| A030DN01 V9 | AUO | 3.0 | 320×240 |
| A030JTN01.1 | AUO | 3.0 | 960×480(dot) |
| AL2004A | Other | 3.0 | 20×4 |
| C-51505NFQJ-LW-ALN | Kyocera | 3.0 | 20×2 |
| CLAA030HA22DE | CPT | 3.0 | 960×480(dot) |
| LH300WQ1-ED01 | LG Display | 3.0 | 240×400 |
| LS030Y7PW01 | SHARP | 3.0 | |
| TFTMD030035 | JDI | 3.0 | 640×480 |
| TM030LDHT1 | Tianma | 3.0 | 240×400 |
