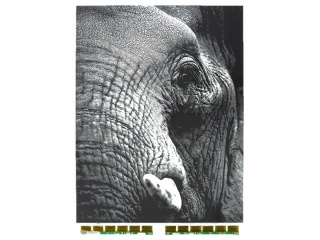

| Nomor Bagian | ED420TT1 |
| Merek | E Ink |
| Ukuran | 42 |
| Aplikasi | Digital Signage |
| Resolusi | 2160×2880 |
| Komposisi | EPD, EPD |
| Kecerahan | |
| CR | 12:1 |
| Warna | Grayscale |
| Lampu latar | No |
| Antarmuka | Parallel |
| merek panel | E Ink |
| model panel | ED420TT1 1 Compatible |
| ukuran panel | 42" |
| tipe panel | EPD, EPD |
| resolusi | 2160×2880, 85PPI |
| format piksel | Rectangle |
| area tampilan | 642.6(W)×856.8(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 650(W)×872.5(H) mm |
| permukaan | Hard coating |
| kecerahan | - |
| rasio kontras | 12:1 (Typ.) (RF) |
| sudut pandang | - |
| mode tampilan | Reflective |
| tampilan terbaik di | - |
| waktu merespon | - |
| menampilkan warna | Grayscale |
| jenis lampu | No B/L |
| frekuensi | 50Hz |
| layar sentuh | Without |
| berat panel | 1.10Kgs (Typ.) |
| aplikasi | Digital Signage |
| antarmuka sinyal | Parallel Data (2ch, 8-bit) , 100 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 70 °C |
