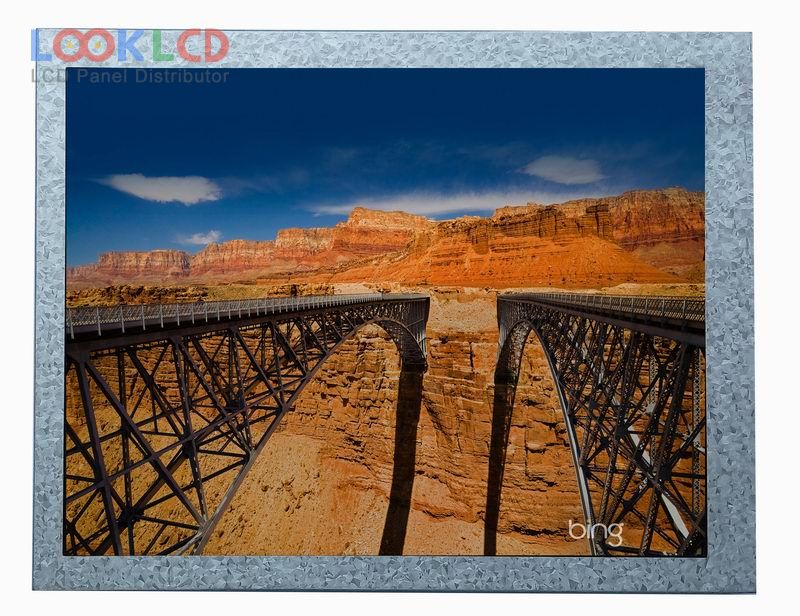

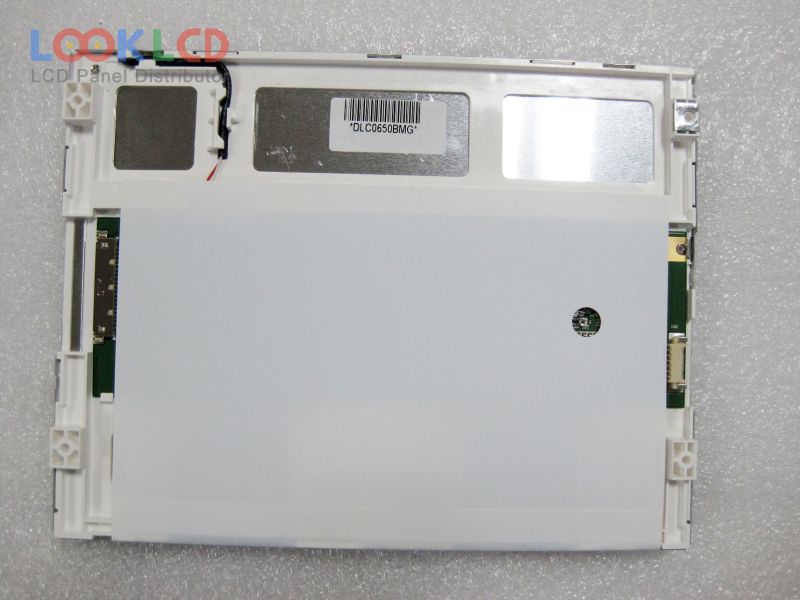

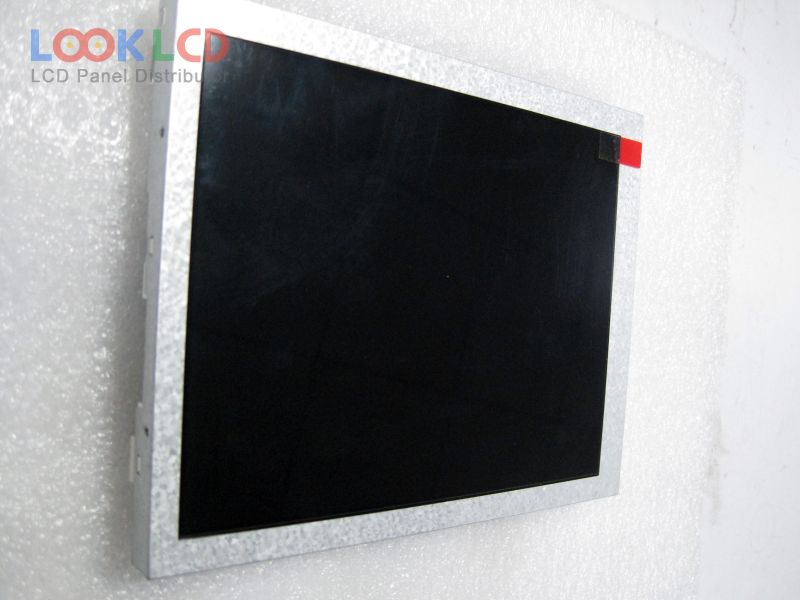

| Nomor Bagian | DLC0650BMG |
| Merek | Other |
| Ukuran | 6.5 |
| Aplikasi | IA |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 800 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | DLC |
| model panel | DLC0650BMG 1 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 6.5 inch |
| resolusi | 640(RGB)×480 , VGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 132.48×99.36 mm |
| garis besar | 153×118×12.2 mm |
| permukaan | Antireflection |
| kecerahan | 800 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193150% |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| sudut pandang | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 6S2PWLEDEmbedded (LED Driver) |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 20 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | IA |
