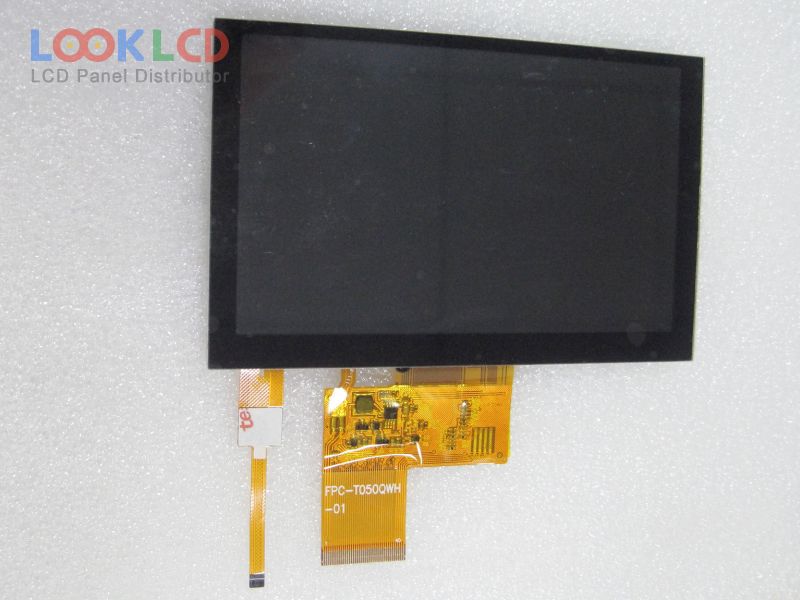

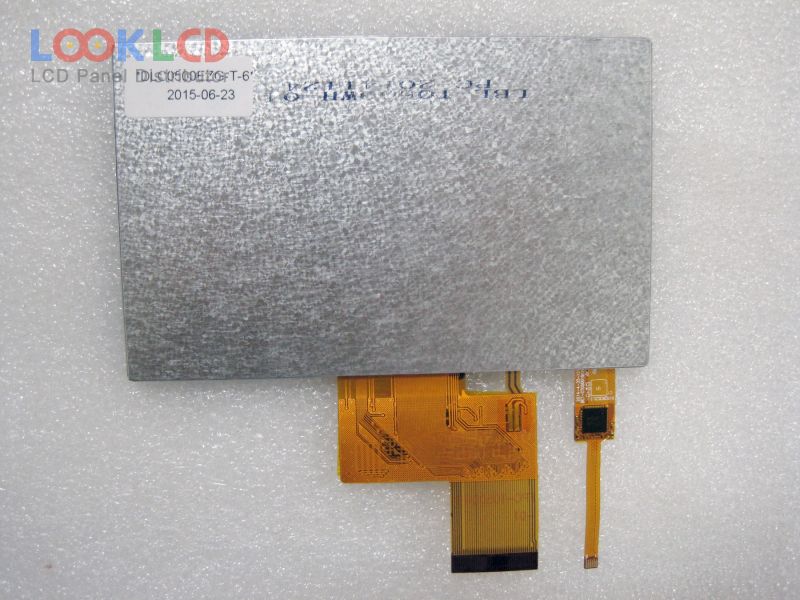

| Nomor Bagian | DLC0500EZG-T-6 |
| Merek | Other |
| Ukuran | 5.0 |
| Aplikasi | PND |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 270 |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | TTL |
| merek panel | DLC |
| model panel | DLC0500EZG-T-6 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 5.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 108×64.8 mm |
| garis besar | 121.1×76.2×5.05 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 270 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193150% |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| sudut pandang | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 6S2PWLEDWithout Driver |

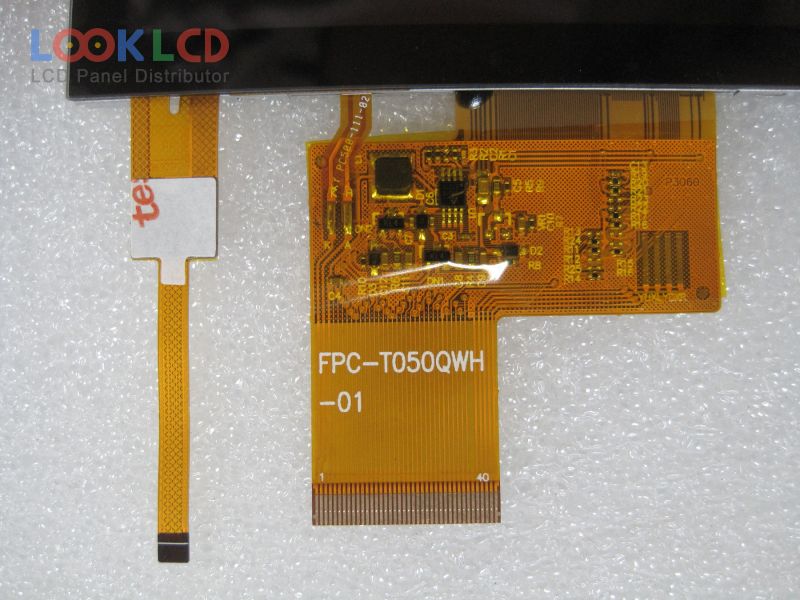

| antarmuka sinyal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | PND |
