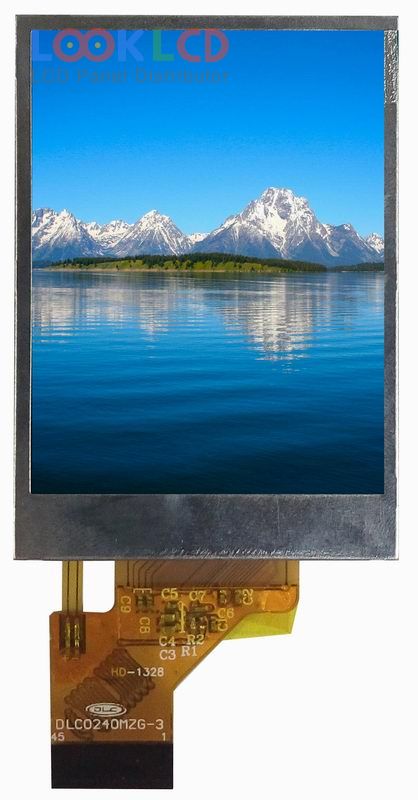

| Nomor Bagian | DLC0240LZG-4 |
| Merek | Other |
| Ukuran | 2.4 |
| Aplikasi | MPH |
| Resolusi | 240×320 |
| Komposisi | LCM |
| Kecerahan | 1000 |
| CR | 350:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | CPU |
| merek panel | DLC |
| model panel | DLC0240LZG-4 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 2.4 inch |
| resolusi | 240(RGB)×320 , QVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 36.72×48.96 mm |
| garis besar | 42.72×60.35 mm |
| permukaan | Glare (Haze 0%) |
| kecerahan | 1000 cd/m² (Typ.) |
| rasio kontras | 350:1 (Typ.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 20 (Typ.)(Tr+Td) |
| sudut pandang | 45/45/50/30 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 6S1PWLEDWithout Driver |
| antarmuka sinyal | CPU, 45 pins |
| tegangan masukan | 2.8/3.3V (Typ./Max.) |
| aplikasi | MPH |
