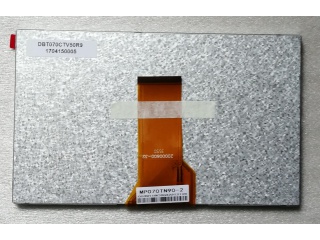

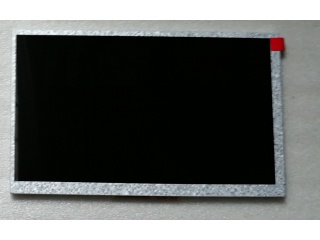

| Nomor Bagian | DBT070CTV50R9 |
| Merek | No Brand |
| Ukuran | 7.0 |
| Aplikasi | Industrial Outdoor H |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | |
| merek | No Brand |
| ukuran diagonal | 7.0 inch |
| format piksel | 800(RGB)×480 [WVGA] 134PPI |
| daerah aktif | 154.08(H)×85.92(V) mm |
| daerah bezel | 157(H)×89.5(V) mm |
| pencahayaan | 1000 cd/m² (Typ.) |
| arah pandangan | - |
| sudut pandang | 70/70/50/70 (Typ.)(CR≥10) |
| warna pendukung | 16.7M |
| berat | TBD |
| kecepatan bingkai | 60Hz |
| model | DBT070CTV50R9 |
| jenis | a-Si TFT-LCD , LCM |
| konfigurasi | RGB Vertical Stripe |
| garis besar redup. | 165(H)×100(V) mm |
| perlakuan | Antiglare |
| rasio kontras | 500:1 (Typ.) (TM) |
| waktu merespon | 10/15 (Typ.)(Tr/Td) |
| Modus operasi | TN, Normally White, Transmissive |
| sumber cahaya | WLED , 20K hours , W/O Driver |
| dirancang untuk | Industrial Outdoor High Brightness |
| panel sentuh | Without |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN94 | Innolux | 7.0 | 800×480 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| G070VVN01.0 | AUO | 7.0 | 800×480 |
| LMS700KF07 | Samsung | 7.0 | 800×480 |
| LQ070T1LG01 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG30 | SHARP | 7.0 | 800×480 |
| PM070WL3 | E Ink | 7.0 | 800×480 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
